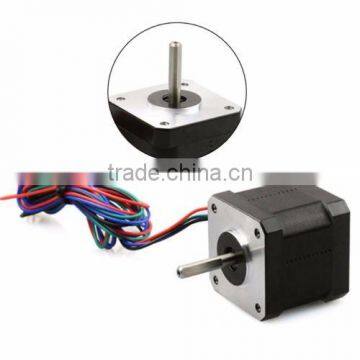

1.8 Degree NEMA17 42mm 2 Phase 4-wire Stepper Motor For 3D Printer CNC Robot
- ShenZhen
- Credit Card PayPal
You May Like
-
SRH805S 144/430MHz SMA-F Female Dual Band Antenna
-
Fast GY561 Portable Frequency Counter Tester + Power Meter for Two-Way Radio
-
Pocket Portable Digital PH Meter Tester for Pool Water Aquarium Hydroponic Wine
-
Bias Tape Makers Set Kit Binder Binding Snap on Foot Sewing Quilting Tools+AWL
-
High quality M3 single end Hexagonal Copper Column Hex Column Stud 4-60mm + Threaded 6mm
-
Premium 6-165mm 304 Stainless Steel T-Bolt Turbo Silicone Hose Clamp
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | ET-E686 | Phase | 2 | |
| Step Angle(degrees) | 1.8 Degree | Current / Phase | 1.7A |
Product Description
Features:
100% brand new and high quality
2 phase NEMA17 42mm 4-wire stepper motor
Fits for 3D printers, monitor equipment, medical machinery, textile machinery,
packaging machinery, stage lighting and so on .
Wiring: Black Green A +, A- red and Blue B +, B-,.
Adapter Drive JK0220 (drive voltage DC12V ~ 36V, AC12V ~ 24V, current range 0.3A ~ 2.0A).
Specifications
Model: JK42HS40-1704
phase : 2
Material: Metal
Color: As picture shows
Size: 42*42*40 mm
Rated voltage: 12-24V
Power: 5W
Current: 1.7A
Rated Speed: 0-1500 RPM
Rated torque: 0.42 NM
Step angel:1.8°
Temp. rise: max 80 ℃
Ambient temp.: -20 ℃ -50 ℃
Insulation resistance:100MΩmin.(500V DC)
Dielectric strength: 500VAC for 1 minute
Shaft Radial Play: 0.02Max. (450g-load)
Shaft Axial Play: 0.08Max. (450g-load)
Max. radial force: 28N (20mm from the flange)
Max. axial force: 10N
Electrical specification
Motor length: 40 (L) mm
Rated current:1.68A
Resistence per phase:1.5Ω
Inductance per phase:2.3mH
Holding torque:4.2 kg.cm
# of leads No.: 4
Detent torque:150 g.cm
Rotor interia: 54 g.cm
Mass:0.40kg
