Home > Products > DIN763 Link Chain > Superior Quality Zinc Plated DIN763 Long Link Chain For Russia Market
Superior Quality Zinc Plated DIN763 Long Link Chain For Russia Market
- 800 Ton / Tons per Month
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | shuguang | |
| Model Number | DIN763 Link Chain | Structure | Welded Chain | |
| Function | Drag Chain | Material | Other, Q235,Q195,Carbon Steel | |
| Standard or Nonstandard | Standard |
Product Description
1.About Us:
1)We have strong technical force,advanced equipment.
2)We produce regular steel link chains,high tensile chains,stainless chains.
knotted chains and animal chains,covering over 300 sizes and specifications.
3)Our products have been exported to the US,Canada,Europe and more than 20 countries and regions.
2.Brief Introduction:
1)M.O.Q:1Ton
2)Material:Q235,Q195,Carbon Steel,20Mn.
3)Packaging:Gunny Bag,Steel Drum,Wooden Case,Pallet
4)Payment: L/C,T/T,Western Union
5)Trade Terms:FOB,CIF,CFR
6)Surface:Self Color,Zinc Plated,Black,HDG
7)Delivery Time:Within 30 days after received the 30% in advance by T/T
3.Specification:
DIN763 Link Chain:
SIZE | INSIDE LENGHT | OUTSIDE WIDTH | WORKING LOAD | TEST LOAD | BREAKING LOAD | WEIGHT PER M | |||
MM | ±AMM | MM | ±MM | MM | ±AMM | KG | N | N | KG |
2 |
0.5
| 22 | 1.0 | 8 | 0.4 | 25 | 800 | 1250 | 0.06 |
2.5 | 24 | 1.1 | 10 | 0.5 | 40 | 800 | 2000 | 0.10 | |
3 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 | |
3.5 | 28 | 1.3 | 14 | 0.7 | 80 | 1540 | 3850 | 0.20 | |
4 | 32 | 1.5 | 16 | 0.8 | 100 | 2500 | 6000 | 0.27 | |
4.5 | 34 | 1.7 | 18 | 0.9 | 128 | 3000 | 6300 | 0.35 | |
5 | 35 | 1.8 | 20 | 1 | 160 | 4000 | 10000 | 0.43 | |
5.5 | 38.5 | 1.8 | 22 | 1.1 | 195 | 4200 | 9500 | 0.52 | |
6 | 42 | 2 | 24 | 1.2 | 224 | 5000 | 14000 | 0.63 | |
7 | 49 | 2.5 | 28 | 1.4 | 300 | 7500 | 18000 | 0.86 | |
8 | 52 | 2.5 | 32 | 1.6 | 400 | 10000 | 25000 | 1.1 | |
8.5 | 56 | 2.8 | 34 | 1.7 | 460 | 10200 | 22500 | 1.25 | |
9 | 59 | 3.0 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 | |
10 | 1 | 65 | 3.2 | 40 | 2.0 | 630 | 16000 | 40000 | 1.75 |
11 | 72 | 3.4 | 44 | 2.0 | 790 | 15800 | 47500 | 2.11 | |
12 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55 | |
13 | 82 | 4 | 52 | 2.5 | 1000 | 25000 | 63000 | 2.95 | |
16 | 100 | 5 | 64 | 3.2 | 1600 | 40000 | 100000 | 4.45 | |
18 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65 | |
19 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25 | |
20 | 120 | 6 | 75 | 3.8 | 2500 | 50000 | 160000 | 7.0 | |
22 | 127 | 6 | 82 | 4.0 | 3170 | 63300 | 190000 | 8.55 | |
25 | 140 | 6.6 | 88 | 4.2 | 4090 | 81700 | 245000 | 10.90 | |
4.We can offer the following products:
1)Weldless chain
2)Animal chain
3)Stainless steel link chain
4)G30 proof coil chain
5)Ordinary mild steel link chain
6)Norwegian standard link chain
7)Korean standard link chain
8)NACM1990 standard link chain
9)ASTM80 standard link chain
10)NACM96 standard link chain
11)Australian standard link chain
12)DIN5685,DIN764,DIN763,DIN766

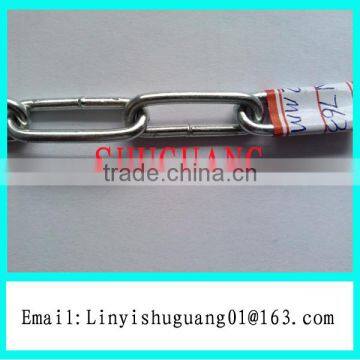

5.Products Pictures:
6.Factory and Equipment:
7.Packaging & Shipping:
And we can pack according to your requirements
8.Please contact me:
Contact Us
- Linyi Hedong Shuguang Rigging Factory
- Contact nameMelody Liu Chat Now
- Phone86-0539-15725199659
- AddressQingdun Temple Village, Xiang Gong Office, Hedong Dist., Linyi, Shandong
