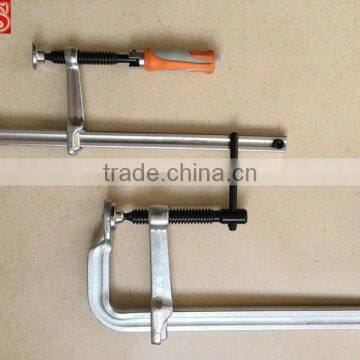

Strong Hand Welding Clamp Forged Steel Utility Clamps
USD $8 - $10
/ Piece
1 Piece(Min.Order)
- Qingdao
- T/T Credit Card
You May Like
-
Adjustable Column Forming Shuttering Single Bar Clamps
-
Adjustable Shuttering Column Formwork Steel Single Bar Clamps
-
Concrete Column Forming Single Bar Adjustable Clamps
-
Ellis Adjustable Steel Single Bar Concrete Column Forming Clamps
-
Formwork Concrete Column Adjustable Single Bar Type Clamps
-
Galvanized Single Bar Type Column Form Adjustable Steel Clamps
Product Details
| Place of Origin | Shandong, China | Brand Name | LYQS | |
| Model Number | LYQS |
Product Description
Product Description
- Economical 4-in-1 Clamp adapts to serve four different functions: 1) Standard clamping 2) Pipe clamping 3) Spreader clamping 4) Step-over clamping
- Removable / reversible clamp arm
- Made of heat treated CRV steel and galvanized plated for strength and durability
- 1 Clamp with 4 Functions!
- Sliding Arm is 10X faster than turning a threaded screw on a C-clamp
The V-Pad adjusts to hold round, flat, and angled stock
SPECIFICATIONS
| Size | Rail Size | Throat Depth | Weight(kg) | Clamping Pressure |
| 500X100 | 18.5x9.5mm | 500mm | 1.25 | 350 |
| 400X100 | 18.5x9.5mm | 400mm | 1.15 | 350 |
| 300X100 | 18.5x9.5mm | 300mm | 1.00 | 350 |
| 200X100 | 18.5x9.5mm | 200mm | 0.85 | 350 |
| 300X80 | 22x10.5mm | 300mm | 1.15 | 550 |
| 400X80 | 22x10.5mm | 400mm | 1.35 | 550 |
| 500X80 | 22x10.5mm | 500mm | 1.55 | 550 |
| 600X80 | 22x10.5mm | 600mm | 1.75 | 550 |
| 800X80 | 22x10.5mm | 800mm | 2.15 | 550 |
| 150X100 | 25x12mm | 150mm | 1.10 | 750 |
| 200X100 | 25x12mm | 200mm | 1.25 | 750 |
| 300X100 | 25x12mm | 300mm | 1.65 | 750 |
| 400X100 | 25x12mm | 400mm | 1.90 | 750 |
| 500X100 | 25x12mm | 500mm | 2.10 | 750 |
| 600X100 | 25x12mm | 600mm | 2.30 | 750 |
| 200X120 | 30X14.7mm | 200mm | 2.25 | 900 |
| 300X120 | 30X14.7mm | 300mm | 2.55 | 900 |
| 400X120 | 30X14.7mm | 400mm | 2.85 | 900 |
| 500X120 | 30X14.7mm | 500mm | 3.20 | 900 |
| 600X120 | 30X14.7mm | 600mm | 3.45 | 900 |
| 800X120 | 30X14.7mm | 800mm | 4.05 | 900 |
| 1000X120 | 30X14.7mm | 1000mm | 4.70 | 900 |
