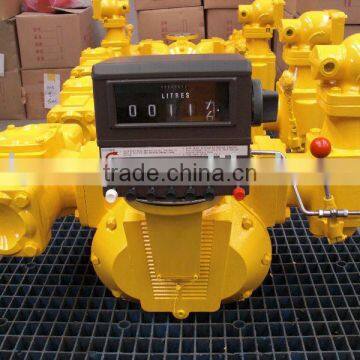

Positive displacement flow meter
Negotiable
/ Unit
1 Unit(Min.Order)
- 10000 Unit / Units per Month
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Model Number | M-100-KX-1 |
Product Description
Specifications
Excellent stepless adjusting mechanism allows a micro adjustment of the meter; High accuracy and repeatability over the widest| Model | M-40-1 | M-50-1 & M-50H-1 | M-80-1 % M-80H-1 | M-100-1 & M-100H-1 | M-150-1 & M-150H-1 |
| Size | 40mm / 1-1/2" | 50mm / 2 " | 80mm / 3 " | 100mm / 4 " | 150mm / 6 " |
| Flow Range | 25-250L/min | 38-380L/min & 50-550L/min | 75-750L/min & 115-1150L/min | 130-1300L/min & 170-1700L/min | 225-2250L/min & 300-3000L/min |
| Max. Pressure | 10Bar/150PSI | ||||
| Accuracy | ±0.2% | ||||
| Repeatability | ≤0.05% | ||||
| Standard Measurement | Unit Liter / US Gallon / Imperial Gallon | ||||
