XT-M100 Hot Air Seam Sealing Machine for Rainwear

 XT-M100 hot air seam sealing machine for rainwear.

Technical Parameter:

Power consumption    :220vac50hz1800w abt
Speed                              :2.5-20m/min infinitey variable
Compressed air            :50psi(min)
Upper roller lift              :30mm
Working roller height   :150mm
Fudible band width        :Standard 14mm-22mm other optional
Heater power                 :1700w of special heating elements
Pressure roller width   :25.4mm standard with options for plain point engraved and striped roller.
Heat comtrol                   :Infinitely variable up to 700°C
Size                                   :Width 550mm length 1400mm height 1690mm
Sema skip prevention  :Adjustable delays on both nozzle in,drive start and drive stop,nozzle out.

Application:

used for waterproof fabric sewing like PVC,PU/polyeaster/nylon fabric ,it's the first choose product for some manufactories.

2.Characteristic

micro-computer control,easily operation,it can still work for 24hours and it's very convenient.It reduces the hard work to the worker

3.Features:

One:

IC monitoring and interlocking on nozzie pressure,temperatore and motor speed status protect the machine against misrse an ensore the quality of the final product.

Two:

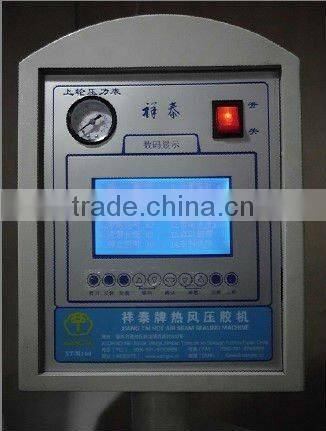

Scree multi-functionaldisplay unit provide clear indications on fabric speed,operaling status and alarming.

Three:

Fully automatic temperature controller with both set point and process value indications.

Four:

Advance design:sealing temperature,speed and status display controlled by individual micro controllers
