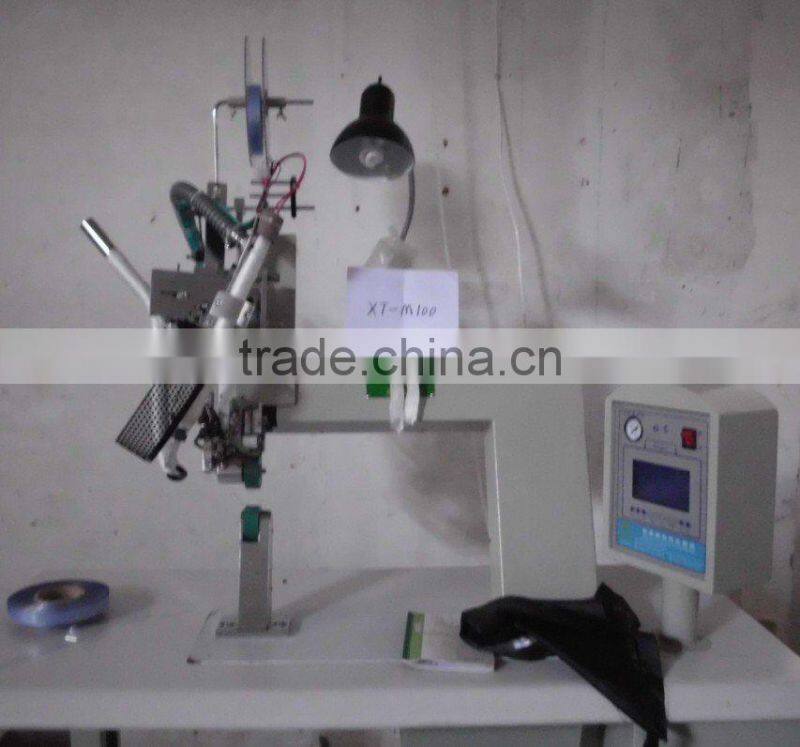

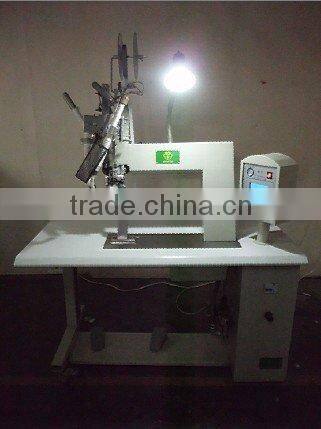

Hot Air Seam Sealing Machine for Jacket/raincoat

XT-M100 hot air seam sealing machine.

Technical Parameter:

Power consumption    :220vac50hz1800w abt
Speed                              :2.5-20m/min infinitey variable
Compressed air            :50psi(min)

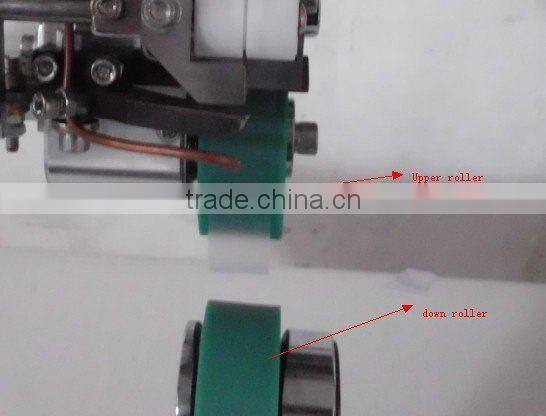

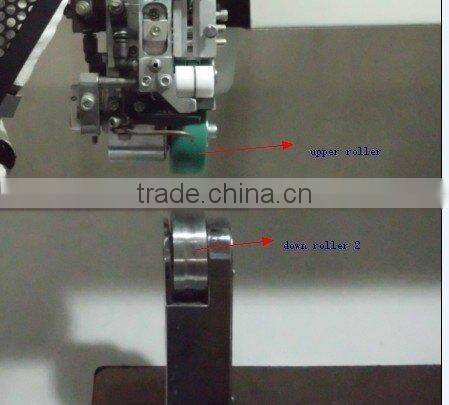

Upper roller lift              :30mm
Working roller height   :150mm
Fudible band width        :Standard 14mm-22mm other optional
Heater power                 :1700w of special heating elements
Pressure roller width   :25.4mm standard with options for plain point engraved and striped roller.
Heat comtrol                   :Infinitely variable up to 700°C
Size                                   :Width 550mm length 1400mm height 1690mm
Sema skip prevention  :Adjustable delays on both nozzle in,drive start and drive stop,nozzle out.
Net Weight                      :162KG.

Application:

1.Hot air seam sealing tape machines is applied to Nylon-PVC,Polyeaster/Nylon-PU fabric,Raincoat,Rainwear,Jacket,Tent,Snow-suit,waterproof covers sealing.

it's the first choose product for some manufactories.

2.Characteristic

micro-computer control,easily operation,it can still work for 24hours and it's very convenient.It reduces the hard work to the worker

3.Features:

One:

IC monitoring and interlocking on nozzie pressure,temperatore and motor speed status protect the machine against misrse an ensore the quality of the final product.

Two:

Scree multi-functionaldisplay unit provide clear indications on fabric speed,operaling status and alarming.

Three:

Fully automatic temperature controller with both set point and process value indications.

Four:

Advance design:sealing temperature,speed and status display controlled by individual micro controllers

Advantage:

1.XT-M100 HOT AIR SEAM SEALING MACHINE is the integrated-circuit system,

  which is superior than the electronic form.

2.The panel operation of our machine is computor control,
the fabric choosing could be 1-10 varietied.
Details information:
The first time,you are using our machine to seam sealing the PVC fabric,
then you could set up the temperature,speed and so on.
and the next time,you can just choose the fabric choosing button to work.
Since it keep a record of 1 for PVC fabric.

And you cn set number 2 for PU fabric.

So 10 choosing for you to kee the records.
Which make things going easier.


3.About the heating tube,
our power of heating tube is 2200W,
and others are almost 1600W.

Since the higher power of heating tube,the faster speed.
So, even you using the lower temperature,
it could seam sealing well.
Which avoids the low temperature couldn't make the hot melt adhesive melting.

4.About the Air Blower
The power of our Air Blower is higher than others.

When working,you could hear the sound of wind from the Air blower,
while others are really too small to hear.

5.Of course,I think the most important is our excellent after-sale service.
Once the machine broken,we could communicate by vedio chatting.
Or take some pictures,which would make things sloved easier.
Since we could handle the problem on our side,then you could see from the vedio.
But I think our machine is high quality,
And our after-sale is perpetual free.
While the accessories is not free.
