S80081 Red 3/8" Stud 18" Long 2Gauge Marine Battery Cable And Tinned Lug Assembly

FOB Price

Negotiable / Piece

1500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Jump Start, 3/8" Stud 18" Long 2Gauge Marine Battery Cable and Tinned Lug Assembly	Place of Origin	Zhejiang, China
Brand Name	PowerLink	Model Number	PLK-01, battery cable
Warranty	12 Months

Red 3/8" Stud 18" Long 2Gauge Marine Battery Cable and Tinned Lug Assembly

Product Description

Red 3/8" Stud 18" Long 2Gauge Marine Battery Cable and Tinned Lug Assembly

1>.Specifications for rubber battery cable :

2GA/4GA/6GA
Battery cable
Both ends are made of iron

Battery cable

Copper size:4GA 6GA 8GA

Length:10-78inch

2>.Common Standards for the rubber battery cable :

Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0

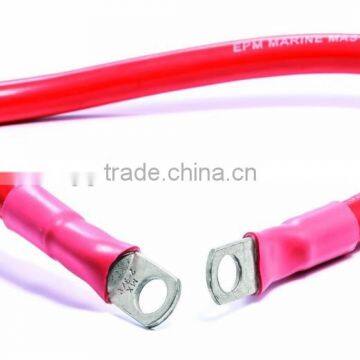

Product Show

Red 3/8" Stud 18" Long 2Gauge Marine Battery Cable and Tinned Lug Assembly
