CAT5e Twisted Pair PV Video Balun With Power
- Shanghai/Ningbo/Shenzhen
- D/P D/A
You May Like
-
8GA Amplifier Kits 8 Gauge Car AMP Wires
-
RG174 Gold Plated High Temperature Resistance Paint Patch Cord Coaxial Cable
-
CCTV Cable18m White Color BNC DC Video Power
-
Twisted Pair Passive Utp Video Balun With Bnc Cable CAT5e
-
Flat Type 22AWG dc Cable Plug for CCTV 30cm 5.5*2.1mm
-
Colorful Micro USB Cable for Smartphone With High Quality
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SINOWELL | |
| Model Number | vk-15 | Type | Twisted Pair | |
| Application | Multimedia | Color | Black | |
| Packing | Slide Card Blister | Connector Type | BNC |
bulk,polybag and so on
Product Description
Specifications

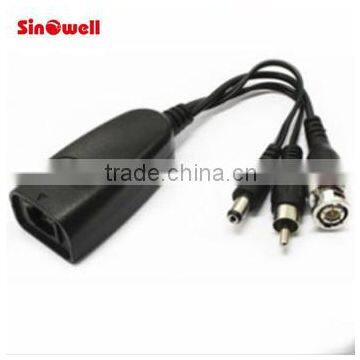

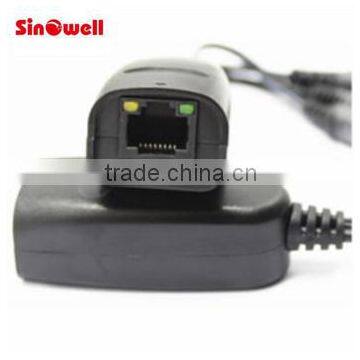

Anti-interference single channel passive utp video balun1.Built-in PCB
2.right angle
3.anti-interference
1. Single channel passive UTP Video Transceiver for CCTV camera (RJ45,CAT5E,twisted pair)
2. High performance video transmitting
3. Built-in PCB, lightning protection , anti-interference ,Connector of balun
4. One of the most classic and widely used single channel passive video balun. It's compact and easy for installation. Technically, it has a high quality zinc alloy BNC and built-intransient suppression protection. Which not only ensure a sound video transmitting quality but also can better protect your valued CCTV equipment.

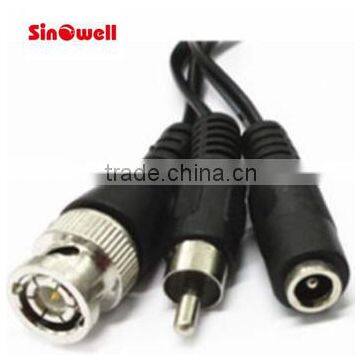

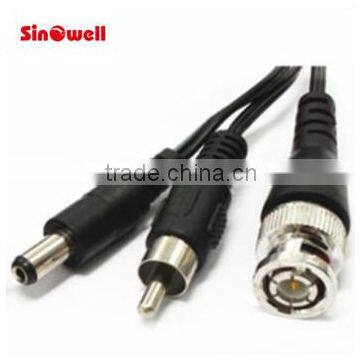

5.With BNC ,DC ,RCA connector and high quality PCB
Features
| 1.Video transmission via UTP CAT5 cale | |
| 2.10-20% wire cost saved. | |
| 3.Full-motion CCTV video at distances up to 1000-2000ft (300-900M) | |
| 4.Outstanding interference rejection and transient protection. | |
| 5.Male BNC allows connection directly to the camera or DVR. | |
| 6.No power required, or have power required | |
| Frequency response: DC to 8 MHZ | attenuation:0.5dBtyp |
| CMRR:60 dB | impedance:BNC:75ohms,terminal:100ohms |
| Coax:75 OHMS | twisted pair:100 ohms |
| Operating:-10°C to + 70°C | storage:-30°C to +70°C |
| Humidity:0 to 95% | wire type:unshieded cat-5 or above twisted pair wire |
| Unshielded Twisted Pair:24-16 AWG | category type:5 or better |
| DC Loop resistance: 52 ohms per 1000-6000ft | differential capacitance:19pF/ft max |
| Material:ABS plastic | |
packaging:bulk,polybag
shipping:By sea or air
1. 24-hour online service guarantees timely reply about the details of any of our products .
2.High quality and best price promise profitable products and long relationship.
3. Supply the packing in accordance with your requirements. .
4.all of our products are high tech ,they are environmental friendly.
5.samples free.
6.Customized designs are acceptable, small order are accepted .
7. timely delivery
8. 100% tested before shipment
Our factory is specialized in prodcing high and low frequency electronic elements and wires and cables,including Multimeter ,F connector,TV plugs and jacks ,splitters, matching transformers,RCA plugs and jacks, Phone plugs and jacks,DC plugs,AC plugs ,AC sockers ,AC adaptors, banana plugs ,banana jacks, bingding post ,audio adaptor , power cable, computer cable ,audio and video cable and so on .Our products is not only sold in China but also exported to Europe, America, Russia, Singapore, Malaysia and other countries in the world. Our products are popularly sold and own a high reputation.
With the principal of "Good promise, high quality", we provide every customer with the best quality products and perfect service.
We warmly welcome you to establish a business with us, and we appreciate every advice from you. Hoping to get mutual benefit together with you!
Company Profile
Changzhou Sinowell Electronics Co., Ltd. is located in the "City of Cables & Connectors" - Changzhou, which is 220km from Pudong Airport, Shanghai. We produce all kinds of AV cables, speaker cables, power cables, SCART cables, telephone cables, LAN cables, COAX cables and new HDMI cables. We also produce raw materials such as copper wires, CCS wires, CCA wires and ALMG wires for finished products. With 8 years' export experience, our export department can supply not only our own products, but also other electrical items such as connectors, speakers, ISO certified items, remote controls and home theatre systems of good quality. We do our best to provide high quality products, competitive prices and on-time services. Also we can work as your agent here in China for purchase and export. It is our great pleasure to develop international markets and march towards a bright future together with you!
