High Voltage Ground Rod With Earth Wire /Low Voltage Security Earth Wire With Clamp
- TIANJIN SHANGHAI GUANGZHOU SHENZHEN
- Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Model Number | YTJDX-400 |
Product Description

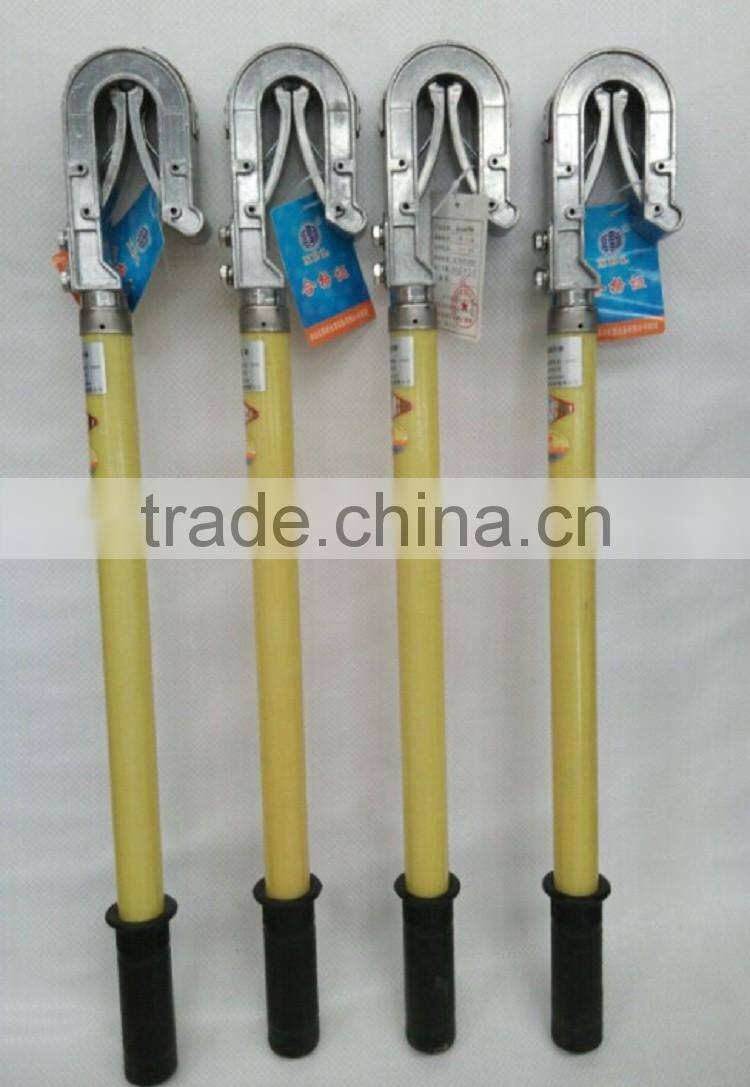

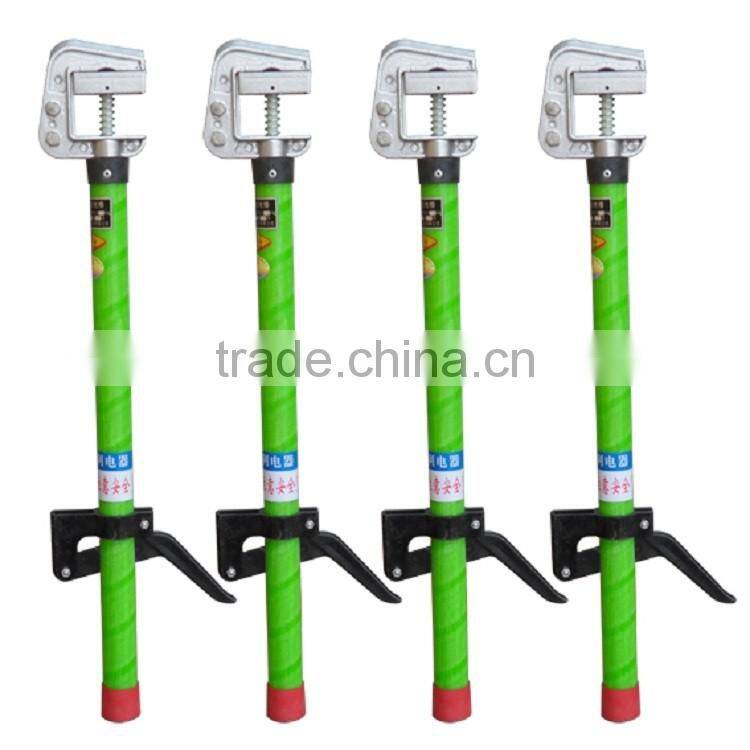

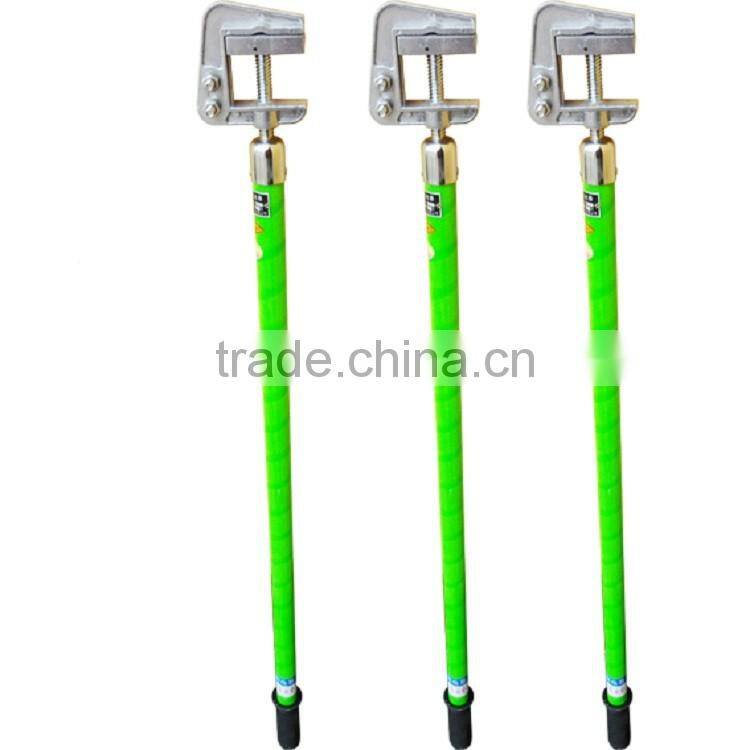

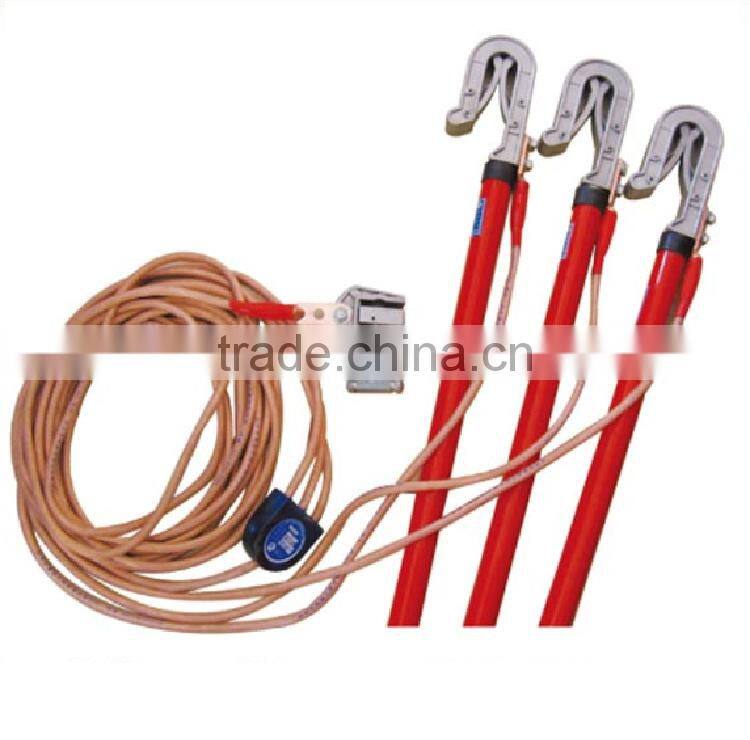

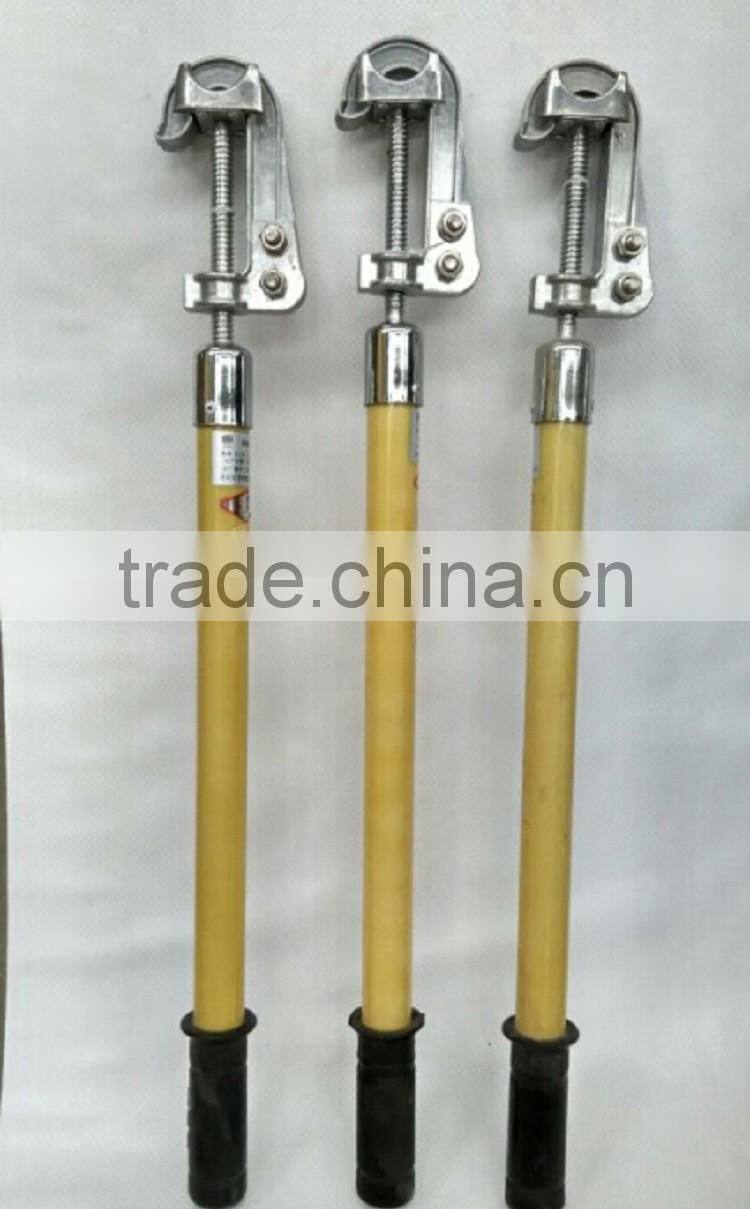

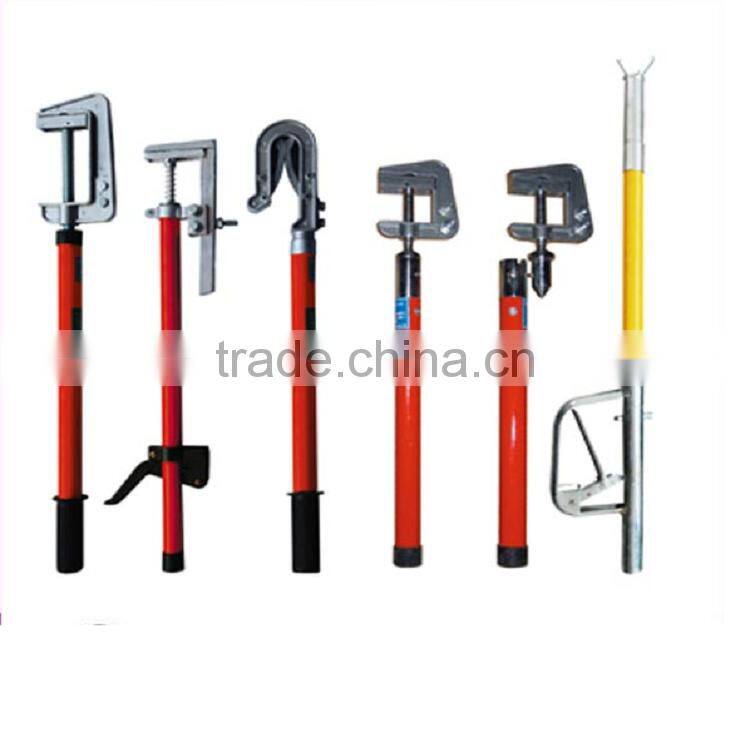

Named: High voltage ground rod with earth wire /Low Voltage security earth wire with clamp
Earth wire set part:
1. Clamp + stick + wire
2. Insulating Fiberglass body
3. Alum clamp
Details:

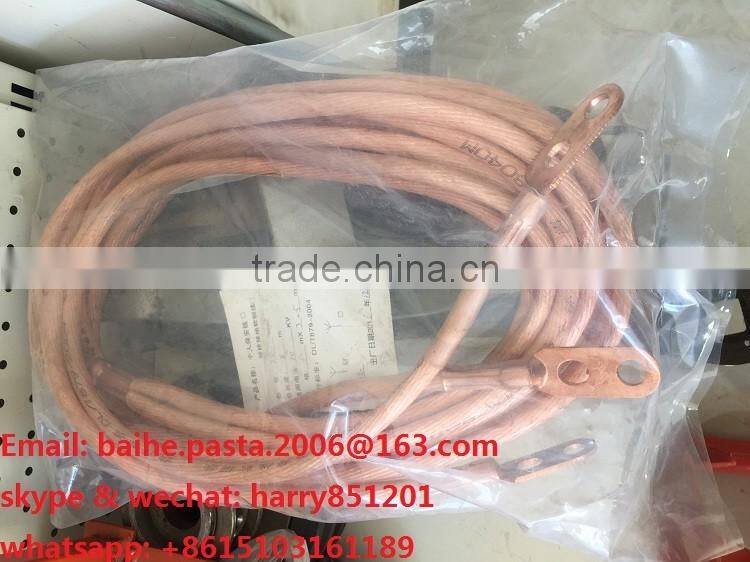

1.Copper wire type:25sqmm, 35sqmm, 50sqmm, 70sqmm of course could produce as customer request.
2. Product characters:
A).the hook use aluminium alloy compression casting,
B).pole use the light epoxy fiberglass manufacture,
high strength, excellent ability of electric conduction.
C).Baling wire uses electrolysis copper wire.
D).The temperature scope for protective cover :+40°C.
3. Applications:
A). Distribution lines and systems
B). Transmission lines and systems
C). Sub-station
D). Underground systems
Name | Type | Cross-Section Area | Length
| configure
| Usage area |
Earth Wire | JDX-400V | 25mm2 | 4x1.5+12m | 1m double reed needle hook | substation |
JDX-10KV | 25mm2 | 3x1+5m | 0.5m hand busbar , ground clip | substation | |
JDX-35KV | 25mm2 | 3x2+8m | 1m spiral hook ,ground clip | substation | |
JDX-110KV | 35mm2 | 3x6+6m | 2m double reed hook, ground clip | substation | |
JDX-220KV | 35mm2 | 3x6+6m | 3m double reed hook, ground clip | substation | |
JDX-500KV | 50mm2 | 15m/item x3item | Duckbill clamp, ground clip | Steel tower | |
JDX-10KV | 25mm2 | 3x1.5+10.5m | 1m double reed hook ,ground nail | Wire route | |
JDX-35KV | 25mm2 | 3x2+18m | 1m double reed hook ,ground nail | Wire route | |
JDX-110KV | 35mm2 | 15mx3item | Duckbill clamp, ground clip | Wire route | |
JDX-220KV | 35mm2 | 15mx3item | Duckbill clamp, ground clip | Wire route | |
Note: length can made by your required uses electrolysis copper wire the temperature scope for protective cover :±40℃ | |||||
