Straight line cable roller
- 50 Piece / Pieces per Month
- TIANJIN
You May Like
Product Details
| Material | Stainless Steel | Place of Origin | Hebei, China | |
| Model Number | YT001 |
Product Description
Specifications
1.sturdy and durable2.using flexibly and conveniently.
3. quality of our products is guaranteed
1.Application
Used for guiding cable to turn and set free.
and used for setting power cable and communication cable in trenchers or on ground.
2.Feature
Corner Cable rollers, the cable rollers are used in protecting the cable during cable-laying at the tunnel construction. So the cable can laying well enough to laying.
3.Detailed Description
Nylon cable laying rollers Use in laying cable on ground protect cable not to wear.
Divides into according to the material quality: Alloy wheels and MC nylon wheels
Type: Tubular and plate
4.Date Sheet
Product No. | Length(mm) | Width(mm) | Height(mm) | Weight(mm) | Payload Max |
YT001 | 330 | 240 | 185 | 4.5 | 12KN |
YT002 | 330 | 280 | 185 | 4.5 | 12KN |
YT004 | 330 | 280 | 240 | 4.2 | 12KN |
YT005 | 300 | 280 | 180 | 4.6 | 12KN |
YT007 | 280 | 260 | 180 | 4.0 | 12KN |
YT009 | 350 | 280 | 180 | 4.2 | 12KN |
YT010 | 350 | 280 | 180 | 4.5 | 12KN |
YT014 | 320 | 280 | 280 | 4.3 | 12KN |

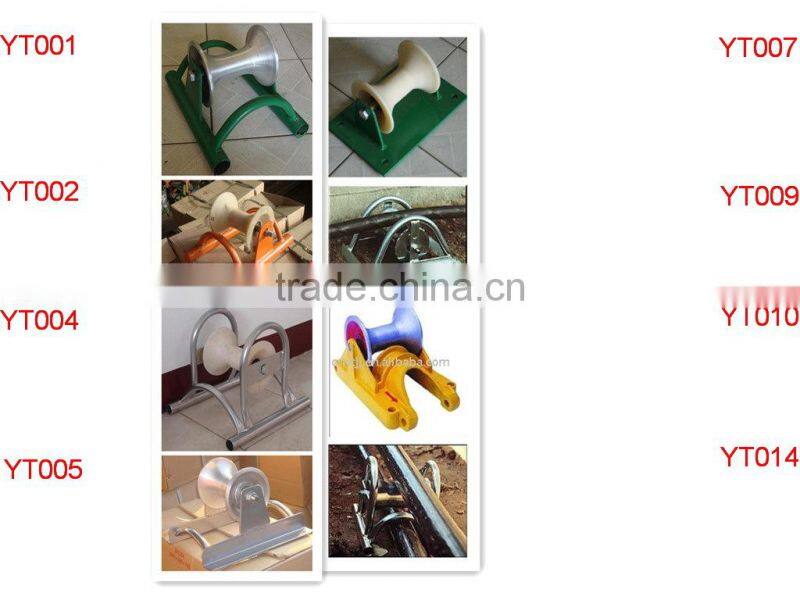

YT001 Cable roller & Straight Line cable roller & cable laying roller
YT002 nylon cable laying rollers
YT004 Nylon Cable Rollers, straight line cable roller, heavy cable roller
YT005 Angle iron cable lying roller
YT007 Ground Roller
YT009 cable laying rollers
YT010 cable laying rollers
YT014 cable laying rollerS
