Home > Products > Cable drum trailer > 8T-10T Machinery Cable Drum Trailer, Cable Drum Winch

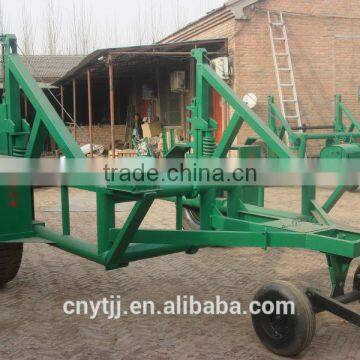

8T-10T Machinery Cable Drum Trailer, Cable Drum Winch
- Tianjin
- Credit Card
You May Like
Product Details
| Max Payload | 8T-10T | Size | 4300*3200*2700 4300*3400*2800 | |
| Place of Origin | Hebei, China | Brand Name | YUFENG | |
| Model Number | JX8T-10T, JX-8T JX-10T |
Product Description
Specifications
8T-10T Machinery Cable Drum Trailer, Cable Drum Winch:1.High quality and low price
2. Simple operation
3.Safety in use
8T-10T Machinery Cable Drum Trailer, Cable Drum Winch
8T-10T Machinery Cable Drum Trailer, Cable Drum Winch used for cable drum hauling and cable pulling pushing. With mechanical lifting method.
It is simple,stable and durable. The traction tire on the font of cable trailer can change angle at random and easy to move.
Equipped with damping device, the stability of trailer was increased greatly.
The trailer can be transported by container after disassembly.
We can make products with special specification as your requirements.
| Model | Rated Load (T) | Weight (Kg) | Max Coil Diameter (mm) | Coil Width (mm) | Length (mm) | Wide (mm) | High (mm) |
| JX-8T | 8T | 2300 | 3300 | 1750 | 4300 | 3200 | 2700 |
| JX-10T | 10T | 2800 | 3500 | 1850 | 4300 | 3400 | 2800 |
Other size:
| Model | Rated Load (T) | Weight (Kg) | Max Coil Diameter (mm) | Coil Width (mm) | Length (mm) | Wide (mm) | High (mm) |
| JX-3T | 3T | 900 | 2300 | 1250 | 3800 | 2300 | 2200 |
| JX-5T | 5T | 1500 | 2800 | 1450 | 4000 | 2600 | 2500 |
