Home > Products > Hydraulic Hose Assembly > High Quality Rubber Hose for Industrial Field

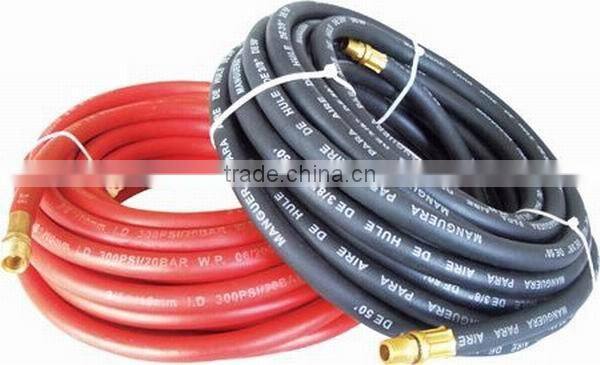

High Quality Rubber Hose for Industrial Field
- xingang tianjin china
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | zhongbo | |
| Model Number | SAE R2 TA/DIN EN 853 2SN |
Product Description
Specifications
High pressure rubber hose, low pressure rubber hose and hose fittingsHigh quality and good price,service
steel wire spiral reinforced layer, and wear resistant synthetic rubber cover.
| ModelSAE 100 R2 AT/DIN EN 853 2SN | |||||||||||
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Lengh | |||
| inch | mm | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | metres | |
| 6 | 1/4 | 6.4 | 12.7 | 15 | 40 | 5800 | 160 | 22840 | 102 | 0.36 | 50/100 |
| 8 | 5/16 | 7.9 | 14.3 | 16.6 | 36 | 5250 | 140 | 20000 | 114 | 0.45 | 50/100 |
| 10 | 3/8 | 9.5 | 16.7 | 19 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 | 50/100 |
| 13 | 1/2 | 15.9 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 | 50/100 |
| 16 | 5/8 | 19 | 23 | 25.4 | 25 | 3630 | 100 | 14280 | 203 | 0.8 | 50 |
| 19 | 3/4 | 19 | 27 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 | 50 |
| 25 | 1 | 25.4 | 34.9 | 38 | 16.5 | 2400 | 62 | 9420 | 305 | 1.35 | 50 |
| 32 | 1'1/4 | 31.8 | 44.5 | 48.3 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 | 20-40 |
| 38 | 1'1/2 | 38.1 | 50.8 | 54.6 | 9 | 1310 | 36 | 5140 | 508 | 2.65 | 20-40 |
| 51 | 2 | 50.8 | 63.5 | 67.3 | 8 | 1160 | 32 | 4560 | 635 | 3.42 | 20-40 |
Hengshui Zhongbo Imp.& Exp. Co.,Ltd.
Products: Variety of steel wire braided rubber hose and hose fittings.
Oil rubber hose,water rubber hose,brake rubber hose,nylon rubber hose
Teflon rubber hose,steam rubber hose,air rubber hose,ocean rubber hose etc.
Model: SAE R1 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11 R12 R13 R14 R15 R16 R17,EN 853-1SN,2SN;EN-856-4SP,4SH;DIN 1SC,2SC or customized for you
Size:any size you need
Application: Automobile, Engineering Machinery, Mining, transportation of air and other Hydraulic Control System.
Construction:Tube:oil and weather resistant synthetic rubber
Reinforcement:high tensile steel wire
Cover:abrasion and weather resistant synthetic rubber
Cetification: ISO9001:2000
Selling market: USA, UK, Germany, Korea, Russia, Iran, India, Pakistan, Kuwait, Brazil, Argentina, Venezuela, Indonesia, Malaysia and so on.
Oil rubber hose delivery gasoline,petroleum,keroaene,diesel oil,and the mining field.
Water rubber hose delivery water and high pressure water
Brake rubber hose used in the automobile field
Nylon rubber hose and Teflon rubber hose used in the chemical field.
Air rubber hose delivery oxygen,carbon and other gas.
Ocean rubber hose used in the ocean drilling oil field.
Other customized rubber hose you need
