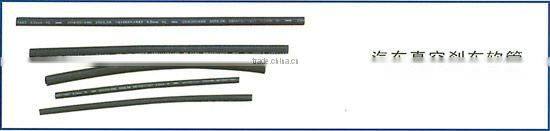

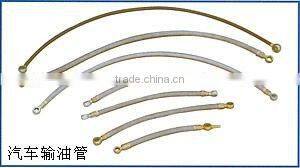

Brake Oil Hose
- TIANJIN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | zhongbo or oem | |
| Model Number | COMPLETE |
Product Description
Specifications
brake hose1.Hydraulic brake hose is for any motorcycle and auto
2.Made according to SAE J1401 strictly
3.ISO9001-2000,
Applications:
Hydraulic Barke Hose: Car, MPV, Light Heavy-Duty Vehicle, Motorcycle & Other Vehicle.
Features:
Hydraulic Barke Hose: Low expansion, rsistance to high temperature, ozone, low moisture permeation, whip and impulse.
Standard:
Test Items | Test Condition | Standard Spec | Test Results |
ID |
| 3.2mm | 3.15~3.45 |
OD |
| 10.5mm | 10.30~10.70 |
Volumetric expansion | 6.9MPa | 1.08ml/m | 0.562ml/m |
10.3MPa | 1.38ml/m | 0.783ml/m | |
Burst | 27.6MPa × 2min; pressure raste 172.5±69MPa/min | no leakage,>49MPa | >75MPa |
Brake fluid compatibilit | 120°C × 70h,27.6MPa × 2min;pressure raste 172.5±69MPa/min | no leakage,>49MPa | >80MPa |
Whip | keep 1.55~1.72MPa | >35h | >80h |
Tensile | tensile speed:25±3mm/min | >1446N | 2400N |
Cold Bend | -45°C ~-48°C× 72h, 3-5s,bending180° | no crack,no rupture | no crack,no rupture |
Ozone | 100pphm×70h×40°C, enlarge 7 times | no cracking | no cracking |
Salt Spray | 5%NaCl,after24h,water cleanout in 35°C | no recl rust on fitting | no recl rust on fitting |
Water Aging | putat water in 85±2°C,after 70h~72h 27.6MPa × 2min;pressure raste 172.5±69MPa/min | burst>49h; whip>35h; tensile>1446N | >82MPa;>60h; >2500N |
