Three heddle woven wire cloth
- Xingang Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Material | Stainless Steel Wire | |
| Type | Wire Cloth | Application | Woven Wire Mesh | |
| Weave Style | Twill Weave | Wire Diameter | 0.14-0.7mm | |
| Technique | Woven | Model Number | DW-003 | |
| Brand Name | Basilica |
Product Description
Specifications
Three heddle woven wire cloth,dutch woven wire cloth,Three heddle weave wire cloth.Three heddle woven wire cloth:

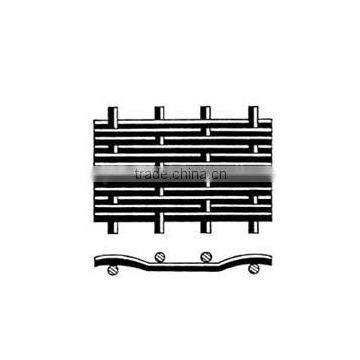

Weaving type:Three heddle dutch weave, Each wire passes over two wires then under one wire.The pattern is staggered on successive warp wires,giving the appearance of paralleel diagonal lines.
Material:stainless steel AISI304,304L,316,316L.
Special steel: Cromax, Incoloy, Alloy Ni-Cr, Inconel, Nichel, Monel, Titanium, Duplex. And low-carbon steel.
Use:Stainless Steel Dutch Woven Wire Cloth is utilized as filter fittings for
chemical industry, medicine, petroleum, telecom-communication, scientific
research units and so on.
Property: This wire cloth provides a rectangular opening,The unique design of this mesh can assist increased drainage and flow properties.This mesh also has a smooth surface on the side.
Package:wrapped with moister-proof paper inside,then in wooden cases outside.
| Mesh | Wire Diameter(mm) | Weight for one meter |
| 6x 66 | 1.00 x 0.60 | 7.44 |
| 8 x 82 | 0.70 x 0.50 | 6.19 |
| 10 x 101 | 0.60 x 0.40 | 4.96 |
| 12 x 114 | 0.50 x 0.35 | 4.28 |
| 14 x 127 | 0.40 x 0.30 | 3.42 |
| 16 x 142 | 0.37 x 0.28 | 3.31 |
| 18 x 178 | 0.35 x 0.22 | 2.67 |
| 20 x 200 | 0.30 x 0.20 | 2.41 |
| 30 x 228 | 0.25 x 0.18 | 2.30 |
| 40 x 243 | 0.22 x 0.16 | 2.05 |
| 50 x 300 | 0.20 x 0.14 | 1.00 |
| 40 x 330 | 0.20 x 0.16 | 2.52 |
| 50 x 398 | 0.20 x 0.14 | 2.45 |
