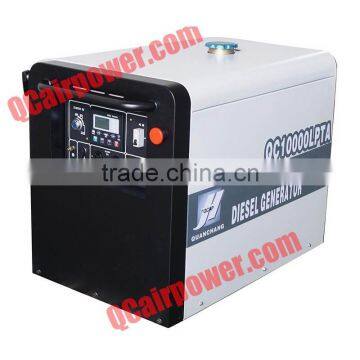

8kw silent diesel generator
- 2000 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | QUANCHANG | |
Model Number | QC10000LT3 | Output Type | AC Three Phase | |
Speed | 3600rpm | Frequency | 60HZ | |
Rated Power | 8KW/10KVA | Rated Voltage | 416V/240V | |
Rated Current | 12.5A |
Product Description
silent generator diesel
1. new patented design,compact structure & light weight
2. strong whole rigidity,low noise
3. operation and maintenance easily
Model | QC8000LPT/TA | QC8000LPT3/TA3 | QC10000LPT/TA | QC10000LPT3/TA3 | |
Rated frequency Hz | 50 60 | 50 60 | 50 60 | 50 60 | |
Rated power KVA | 6 6.5 | 7.5 8 | 7.5 8 | 9.3 10 | |
Rated voltage V | 230/115 240/120 | 400/230 416/240 | 230/115 240/120 | 400/230 416/240 | |
Rated current A | 23.9/47.8 26.3/52.5 | 8.1 10.4 | 34.7/69.5 37.5/75 | 11.5 12.5 | |
Phase No. | single | three | single | three | |
Power factor cosφ | 1 | 0.8(lag) | 1 | 0.8(lag) | |
Insulation | F | ||||
Pole No. | 2 | ||||
Excitation mode | self-excitation and constant voltage(with AVR) | ||||
DC12V output | 12,8.3A | ||||
Dimension mm | 965×560×630 | ||||
Net weight kg | 171 | ||||
Noise (7m) db(A) | 70dB | ||||
Engine model | QC530 | QC570 | |||
Type | single,4-stroke,air-cooled,direct injection | ||||
Displacement | 536 | 567 | |||
Cooling way | air-cooled | ||||
Lubricating way | pressure & splashing | ||||
Starting way | electric | electric | |||
Lube oil capacity L | 1.65L | ||||
Starting motor capacity V-KW | 12V 0.8KW 12V 1.2KW | ||||
Dynamo capacity V-A | 12V 8.3A | ||||
Battery capacity V-Ah | 12V 30AH 12V 36AH | ||||
Fuel tank capacity L | 16L |
QC6D-1 diesel outboard
Vertical air-cooled diesel engine QC460V/QC570V
V-twin air-cooled diesel engine QC840XQC870XQC900X
6-10KVA silent diesel generator set
11-16KVA open frame diesel generator set
The company is located in Nantong Economic & Technological .Development Zone in Jiangsu province.IT is only one hour to Shanghai Hongqiao airport. The company regards independent innovation as the core with many patents, covered airpower and general power. In civil general power, the products developed by the company are of advanced international level and domestic leading level.Single air-cooled Diesel Engine(QC570) is the smallest volume and the lightest weight, but its power is the strongest over the world at present. The Pioneering Silent Generator with Movable Outer Case is the newest designing which is convenient to service. Among the products of 8-12KW generator sets, the products made by the company are more lighter weight and smaller volume than others, and are of advanced international level. After many years' developing, my department has successfully taken the lead in the global in developing the highly energy-efficient and advanced the energy-prepared changing set of new energy generating system. The perfect combination with solar power generating system has made solar power generation become the real independent power generation without power grid and enter thousands of households more conveniently and economically. The company has excellent R&D personnel and production management team,mainly engaged in this industry for many years. The enterprise management and quality control are of standard. We will provide the best quality products to all customers from first to last
Package of 8kw silent generator diesel
with plywood case.
Shipping of 8kw silent generator diesel
by sea
Service of 8kw silent diesel generator
- Free loading capacity analysis
- Free technology consulations
- Free testing and debuging
- 12 months or warranty service
- Spare parts offered
- 24/7 on-line technical serivce
1Q:Can I only buy parts not whole system?
A: Yes, for example you can manufacture tower in local, we can supply you tower drawing.
2Q:Is it all right to make customer's own brand name
A: Sure,with your authorization of brand
3Q: What are your payment terms?
A: T/T 30% deposit,70% balance before delivery
100% T/T Advanced payment for sample orders L/C at sight
4.Q:How about quality control in your factory?
A:"Quality is first, Customers are friends".
Every piece of goods is tested strictly one by one before packing and shipping.
