Home > Products > Water Pump > 6inch DP60 Electric start with big fuel tank diesel water pump set

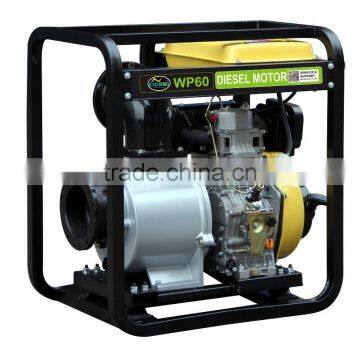

6inch DP60 Electric start with big fuel tank diesel water pump set
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
50mm 2inch gasoline engine agriculture water pump
-
high pressure water pump for car wash 2-inch 6.5hp High Lift water pump
-
2inch 170F engine recoil start/electric start 5hp diesel engine water pump
-
25-100mm gasoline water pumping machine with price
-
Electric start diesel centrifugal pumps price
-
car wash high pressure water pump impeller high volume high pressure water pumps
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | DP60 | Theory | Rotary Pump | |
| Structure | Piston Pump | Usage | Water | |
| Power | Other | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Other, Agriculturel |
Product Description
6inch DP60 Electric start with big fuel tank diesel water pump set
Feature
1.Powered by HONDA engine,the strong and lightweight die-cast aluminium pump delivers high
volume of water.
2. Economical, reliable and durable
3. CE, SONCAP, ISO certification approved
4. One year warranty
Item No.: Newland DP40
Specification
6inch DP60 Electric start with big fuel tank diesel water pump set | |||||
| Model | DP20 | DP30 | DP40 | DP60 | |
| WATER PUMP | Suction,discharge port diameter(mm(in)) | 50(2") | 80(3") | 100(4") | 150(6") |
| HP | 4 | 6 | 9 | 13 | |
| Cont.head(m) | 26 | 28 | 31 | 15 | |
| Self-priming time (s/4m) | 70 | 120 | 180 | 200 | |
| Max suction head (m) | 8 | 6 | |||
| Cont.capacity(m3/hr) | 36 | 50 | 96 | 180 | |
| ENGINE | Engine model | 170F | 178F | 186F | 192FB |
| Speed(rpm) | 3000 / 3600 | 3200 | |||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||||
| Displacement(cc) | 211 | 296 | 406 | 498 | |
| Bore×stroke (mm) | 70×55 | 78×62 | 86×70 | 92×75 | |
| Starting system | Recoil or Electric | ||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | 5.5 | |
| STANDARD FEATURES | Connecter of infall,Connecter of outfall | yes | yes | yes | yes |
| Filter | yes | yes | yes | yes | |
| Seal ring | yes | yes | yes | yes | |
| Hoop | yes | yes | yes | yes | |
| OPTIONAL FEATURES | Luxury big fuel tank | optional | optional | optional | optional |
| Electric Start | optional | optional | optional | optional | |
| DIMENSIONS | Dimension(L×W×H)(mm) | 475×400×515 | 540×440×540 | 645×475×605 | 790×560×870 |
| Dry weight(kg) | 35 | 52 | 69 | 120 | |
PhotoCompany Information
About US
TAIZHOU NEWLAND MACHINERY CO.,LTD,exports gasoline generator,
diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years’s export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become one of the best choice for all customers.
Company Show
Workshop
Spare parts Testing
Production
Product Testing
Warehouse
Loading
1.Q: What is the Trade terms? What’s the nearest port?
A: EXW, FOB, CFR, CIF.(Taizhou)
2.Q: What is your MOQ of this item?
A: 50 sets
3.Q: Are you manufactory or Trading Company?
A: We are manufactory in Zhejiang province, China
4.Q: Is it all right to make customer's own brand name
A: Sure, with your authorization of brand
5.Q: What are your payment terms?
A: T/T 30% deposit, 70% balance should be paid against the B/L copy.
T/T 30% deposit,70% balance irrevocable L/C at sight
6.Q: How long is your warranty?
A: One year or 500hours (accord to whichever reach first) from Ex-Factory date.
7.Q: What is the delivery time?
A: 15~20 days after receiving your deposit or original L/C.
8.Q: What is your company production capacity?
A: 20000-30000 Sets per month against your orders
9.Q: Do you have 4inch diesel water pump?
A: Yes,we have 2inch,3inch,big and small 4inch diesel water pump.
10.Q: Is this model with key start?
A: We have recoil start and electric start,electric start with key.
