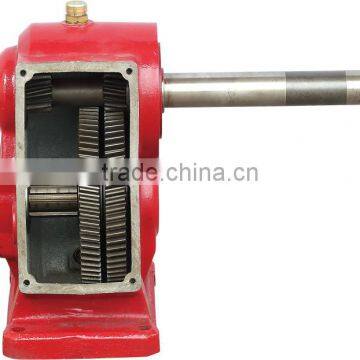

Top Quality HT250 Gearbox Part
- Ningbo or Shang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GTM | |
| Model Number | M55 | Gearing Arrangement | Bevel / Miter | |
| Output Torque | 228Nm | Rated Power | 70hp | |
| Input Speed | 540rpm | Output Speed | 2160rpm |
Product Description
Product details
| Ratio | 1:4 |
| Module | 3.5 |
| Input description | spline shaft |
| Output description | Key way shaft |
| Housing material | HT250 |
| Shaft material | 20CrMnTi |
| Horsing surface color | customized |
| Weight | 52kg |
| Input torque | 910Nm |
| Product Keywords | gearbox part |
Product feature:
1) Transmission ratio: Different ratio as customized.
2) Professional: Professional QC department and inspection equipment to control dimension and backlash and noise well.
3) ODM & OEM: The technology Dpt. can make design the gearbox and develop new craft according to customer's requirement.
4) Warranty period: One and half years to two years.
5) Experience: 20 years experience, safe, reliable, economical and durable.
6) Packing and Delivery control: All of our workers are well trained to guarantee high quality of our gearboxes and 100% products are inspected before delivery.
We promise to supply you perfect design, professional quality control, competitive prices and excellent after-services.
Company feature:
GTM has passed the ISO9001:2008 international quality system certification, ISO14001:2004 environmental management system certification and Quality Austria ISO/TS 16949:2009 quality management system certification, has won numerous customers' trust and support.
Zhejiang Hongye Agricultural Equipment Science and Technology LTD. is a modern enterprise with a combination of development, production, sales and service for transmission products. It is professional in gearbox development and manufacturing with more than 20 years experience. It is manufacturing upward of 500 different kinds of gearbox, used in agricultural, industrial and some other fields.
Our company centers on people, equipped with a large technology team and management talent, forming significant human resource and powerful technology advantagement.
We own a series of high precision CNC workshop, high speed 5-axis linkage digital-controlling gear hobbing machines as well as automatic spray painting line All these equipments supply favorable managing condition and reliable detecting methods.
Our team
Our customer
300 employees, 10 engineers and 30 technicians, long & good business relationship with most famous agricultural machinery manufacturers in the world, such as Alamo, Star, Yanmar, John Deer,Astuant, GKN, YTO group,Weasler.
Sales network
Each year, GTM will take part in different kind of exhibition in China and many other countries.We patiently treat with each customer. GTM agricultural regards the global customer needs as own duty, takes root in China, provides service worldwide. Using technology to ensure excellent quality, using wisdom to create national brand.
