Home > Products > lawn mower gearbox > Top Quality Lawn Mower Gearbox

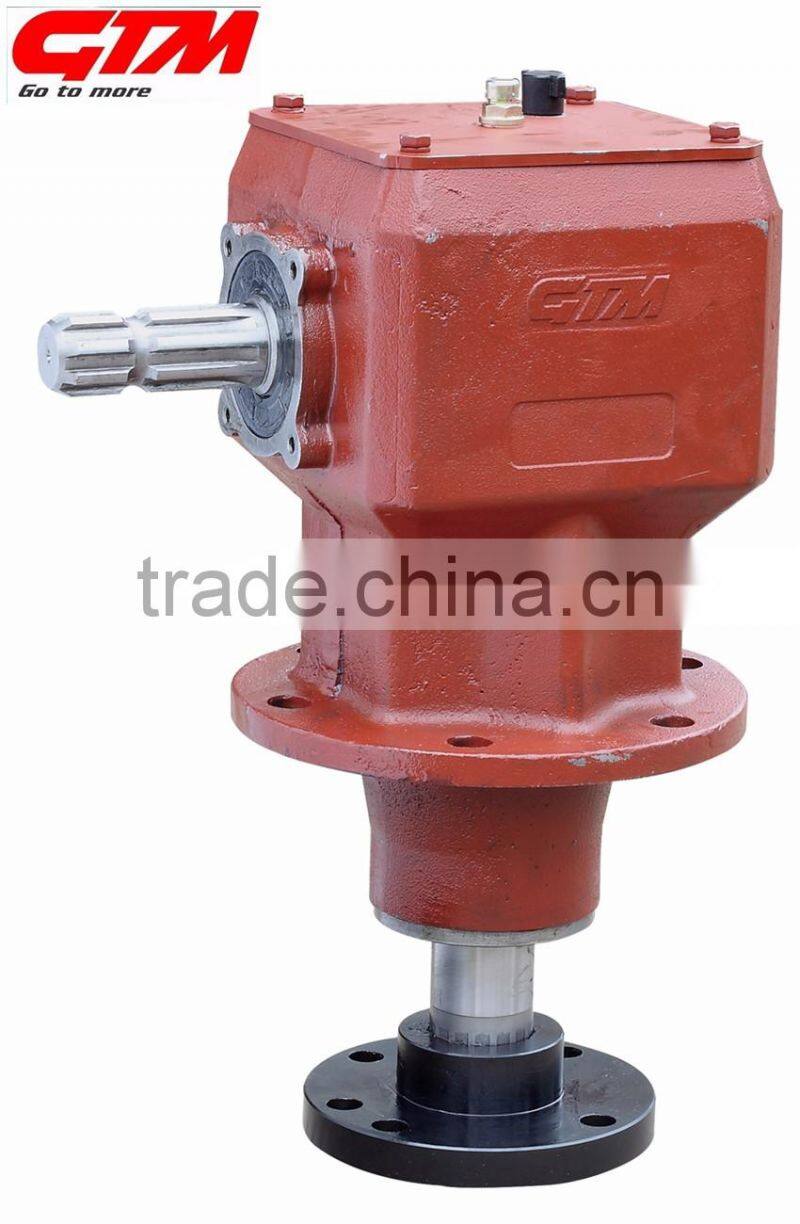

Top Quality Lawn Mower Gearbox
- Ningbo or Shang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GTM | |
| Model Number | RG70 | Gearing Arrangement | Bevel / Miter | |
| Output Torque | 539Nm | Rated Power | 80hp | |
| Input Speed | 540rpm | Output Speed | 1036rpm |
Product Description
Product details
| Ratio | 1:1.92 |
| Module | 6.5 |
| Input description | spline shaft |
| Output description | Key way shaft |
| Housing material | QT450 |
| Shaft material | 20CrMnTi |
| Horsing surface color | customized |
| Weight | 37kg |
| Input torque | 1040Nm |
| Product Keywords | lawn mower gearbox |

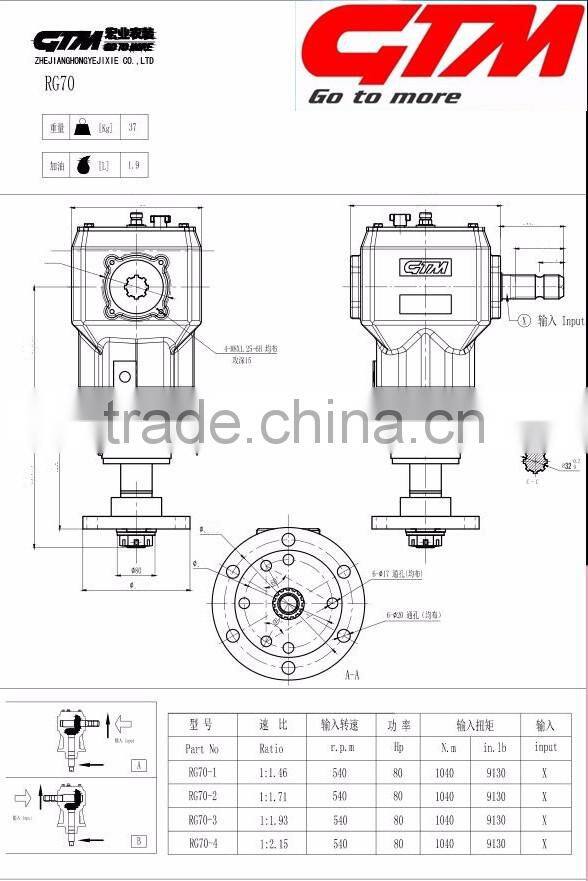

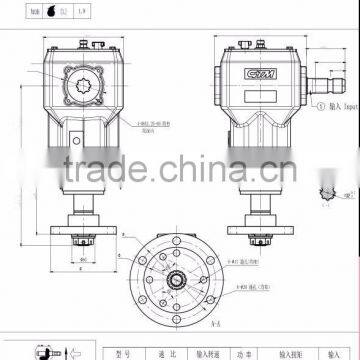

| Type | Ratio | Output r.p.m | Power | Output torque N.m | Input r.p.m |
| RG70-1 | 1:1.46 | 788 | 80HP | 712 | 540 |
| RG70-2 | 1:1.71 | 923 | 80HP | 608 | 540 |
| RG70-3 | 1:1.92 | 1036 | 80HP | 539 | 540 |
| RG70-4 | 1:2.15 | 1160 | 80HP | 484 | 540 |
Product feature:
1) Transmission ratio: Different ratio as customized.
2) Professional: Professional QC department and inspection equipment to control dimension and backlash and noise well.
3) ODM & OEM: The technology Dpt. can make design the gearbox and develop new craft according to customer's requirement.
4) Warranty period: One and half years to two years.
5) Experience: 20 years experience, safe, reliable, economical and durable.
6) Packing and Delivery control: All of our workers are well trained to guarantee high quality of our gearboxes and 100% products are inspected before delivery.
We promise to supply you perfect design, professional quality control, competitive prices and excellent after-services.
Company feature:
GTM has passed the ISO9001:2008 international quality system certification, ISO14001:2004 environmental management system certification and Quality Austria ISO/TS 16949:2009 quality management system certification, has won numerous customers' trust and support.
Factory manufacturing grain transporation gearbox
RG series agricultural rotary lawn mower gearbox
Long life-span agricultural short harvester reversing gearbox
agricultural grain auger gearbox with shafting fork
