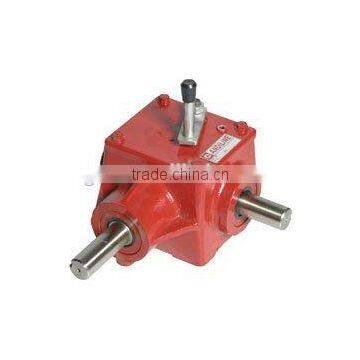

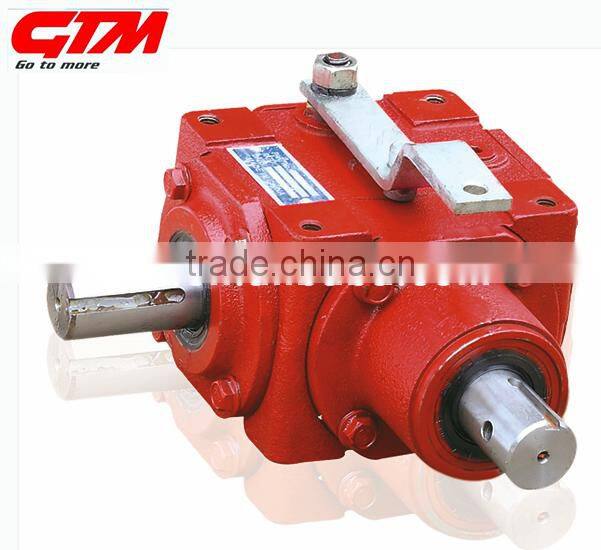

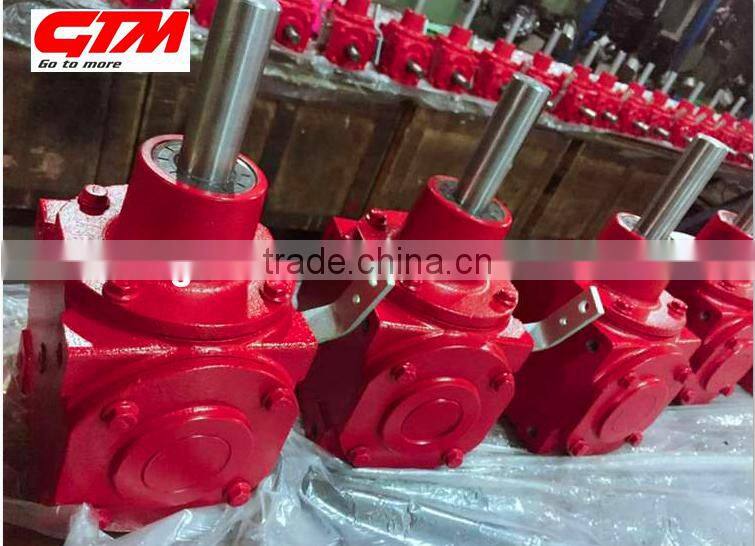

Top1 supplier gearbox manufacturer

FOB Price

US$ 50 - 150 / Piece

50 Pieces(Min. Order)

Port Ningbo Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	GTM
Model Number	27100	Gearing Arrangement	Bevel / Miter
Output Torque	0.2-0.4Nm before asssembly oil seal	Rated Power	20HP
Input Speed	540rpm	Output Speed	540rpm

Product Description

Product details

Housing Material	HT 250
Gear Shaft	20CrMnTi
Ratio	1:1
Input speed	540 rpm
Teeth	19/19
Color	Customer Requests
Bolt torque	16-22NM
Mould NO.	4.233
Noise	82db-1meter
Weight	12kg
Product Keywords	20hp gearbox

Quality assurance:

5 years for quality assurance

ABOUT US

Zhejiang Hongye Agricultural Equipment Science and Technology LTD was established in 1995, located in economic development zone of Wenling city, southeast of China. Hongye commits itself to development, production, sales and service for transmission products. Its products include spiral and straight bevel gearbox, cylinder gear speed reducer, worm reducer, and transmission case etc, widely used in various fields as lawn mowers, grain transportation and storage equipments, rice harvesters, corn harvesters, rotary tillers, pesticide sprayers, fertilizer spreaders, potato harvester, post-hole diggers, snow-blowers, garden machines and oil exploitation fields, etc, with the annual quantity over 250,000pcs.

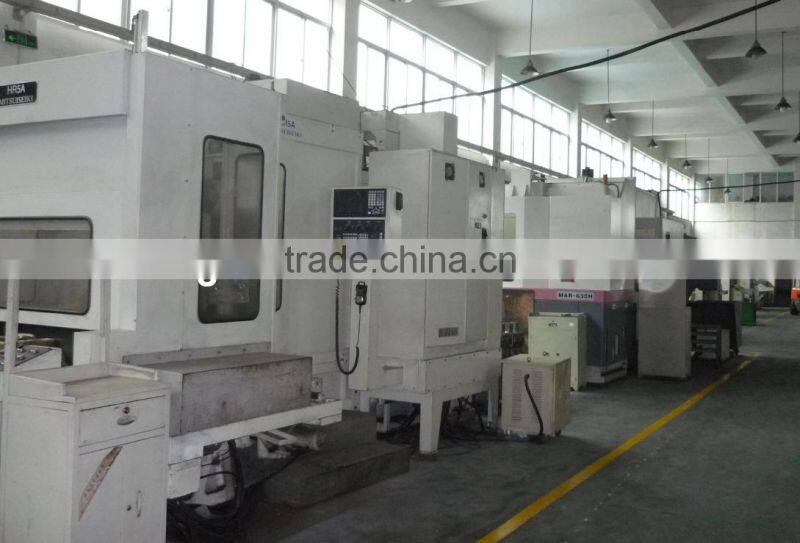

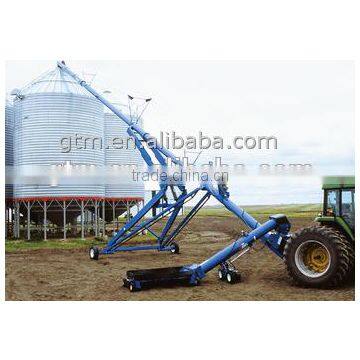

Factory manufacturing grain transporation gearbox

RG series agricultural rotary lawn mower gearbox

Long life-span agricultural short harvester reversing gearbox

agricultural grain auger gearbox with shafting fork

Certifications

security guaranteed 100%

Protect Your Payment, Secure Your Order

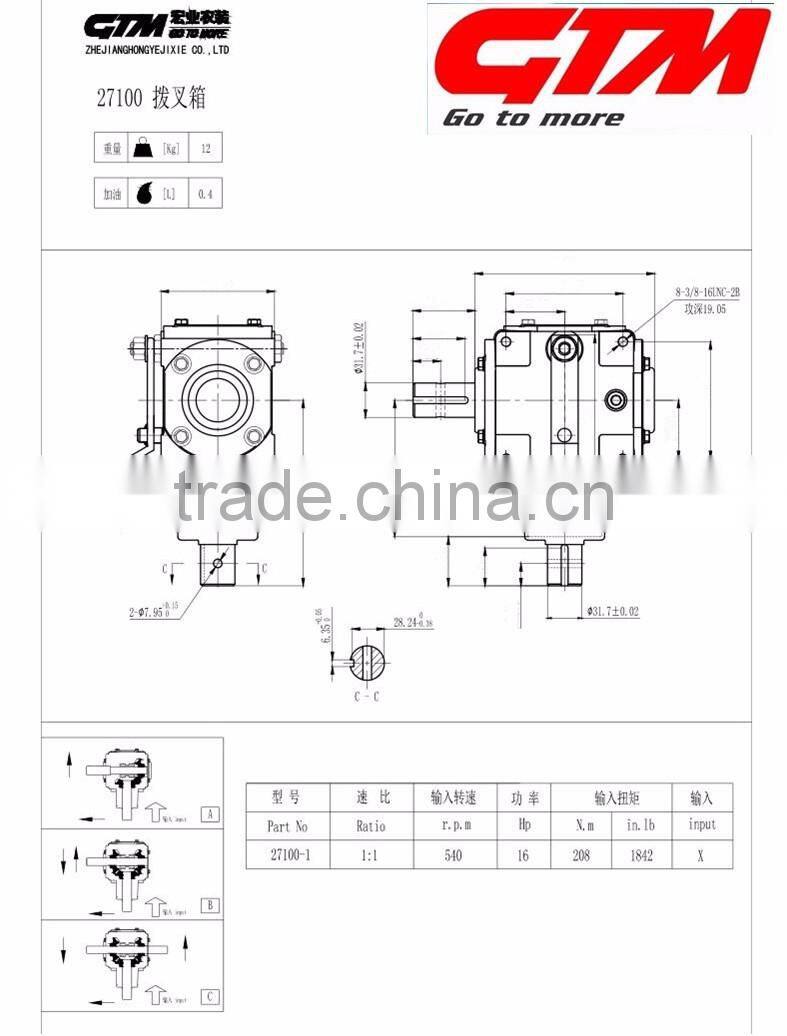

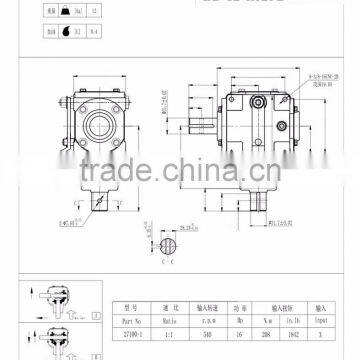

Type	Ratio	Input rpm	Output rpm	Output Torque	Power
27100	1:1	540rpm	540rpm	260NM	20HP

FAQ

Are you trading company or manufacturer ?

We are manufacturer and also can export by ourselves.

How long is your delivery time?

Generally it is 10-15 days if the goods are in stock including confirming all the technical details. or it is 30-45 days if the goods are not in stock, it is according to new design.

Do you provide samples ? is it free or extra ?

Yes, we could offer the sample as customer's request for certain charge as the drawing shows.

What is your terms of payment ?

Payment<=5000USD, 100% TT payment in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment. We also accept LC, WU payment.

Can you deal with OEM & ODM order?

Yes. Hongye offers our customers with customized services from drawings.

Where is your company address?

Our company hongye located in NO.5 of Changjiang Road,2nd Economic Development Zone of Wenling Zhejiang China.
