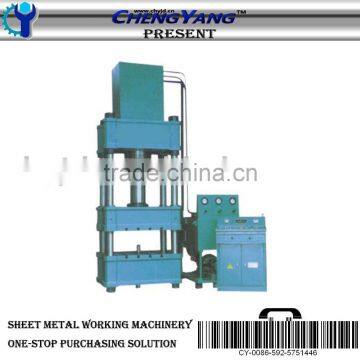

Four Column Hydraulic Press Machine (YTD32-160)

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 3 Set / Sets per Month
Port Xiamen Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Source	Hydraulic
Place of Origin	Guangdong, China	Brand Name	Chengyang
Model Number	YTD32-160T

Product Description

WELCOME TO OUR SITE

Detailed information of YTD32-160 Four Column Hydraulic Press:

I. Main Technical Data:

Item		Value	Unite	Note
Normal Pressure		1600	KN
Return Stroke		320	KN
Ejecting force		250	KN
Max. Hydraulic Pressure		25	Mpa
Max. Slide Stoke		600	mm
Stock of Knock-out cylinder		250	mm
Distance between slider center and machine		1000	mm
Speed of Slide Stroke	100	mm/s
	12	14
	60	47
Speed of Ejector Stroke	65	mm/s
	95	140
Effective area of worktable	1000	mm
	800	580
Machine Area	2625	mm
	1860	1504
Main Power		15	KW

II. Major Elements:

1). Hydraulic system: From Shangdong

2). Sealings: From Taiwan

3). Oil Pumps: From Shuangyuan

4). Electro partsFrom Tianzheng

III. Performance and Character:

1). This machine is applied in pressing malleability material. Such as blanking, curving edges, drawing press for sheet metal. It can be used to straighten, assembling, grinder wheel forming, cold-extruded metal parts forming, plastic and power forming.

2) Independent drive system and electric system; Center control buttons; Auto, manual and semi-automatic operation methods. The work pressure, press speed and stroke range can be adjusted by different technical requirement. And it can finish constant pressure and ting-ching forming. Constant pressure forming can suppress post-packing and delay auto-return action.

IV. Can make it according to client's requirement.
