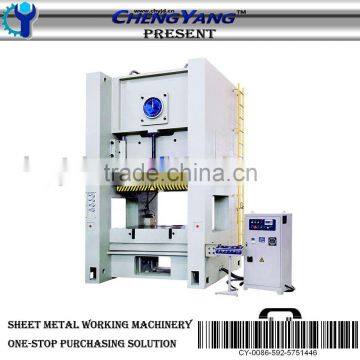

H Frame Two Points Hydraulic Press
Negotiable
/ Set
1 Set(Min. Order)
- Xiamen Port
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Cheng Yang | |
| Model Number | JL36 |
Product Description
Production Details:
The press of this series adopts whole frame structure with rigid steel,high precision and wide operation space, which is widely used in precision work and automatic production.
Production Features:
Welded frame with quality steel of good rigidity.
H-frame semi cloed structure of little deformation and good rigidity.
Double crankshafts converse rotation will eliminate side force.
Square figure with ix frication faces assures precision and stability.
Combined type pneumatic friction clutch and brake with automatic lubrication.
Hydraulic overload protector and PLC controller speed die changer air cushion, photo guard ,auto feeder are optional.
Main Technical Parameter:
| Item | Unit | JL36-110 | JL36-160 | JL39-200 | JL36-250 | JL36-315 | JL36-400 | JL36-500 | JL36-630 | |
| Nominal Pressure | kn | 1100 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 | 6300 | |
| Nominal Pressure Stroke | mm | 5 | 6 | 7 | 7 | 8 | 8 | 10 | 13 | |
| Slide Stroke | mm | 180 | 200 | 230 | 250 | 250 | 250 | 280 | 300 | |
| Max.Die Height | mm | 410 | 460 | 510 | 560 | 560 | 560 | 590 | 620 | |
| No. Of Stroke | Fixed | spm | 55 | 40 | 35 | 32 | 30 | 26 | 20 | 18 |
| Adjustable | 35-65 | 30-50 | 25-45 | 20-40 | 20-35 | 20-30 | 18-25 | 15-20 | ||
| Die.Height Adjust | mm | 90 | 100 | 110 | 120 | 120 | 120 | 120 | 140 | |
| Bolster Surface Size | F.B. | mm | 680 | 760 | 840 | 920 | 950 | 1000 | 1200 | 1400 |
| L.R. | mm | 1730 | 1930 | 2320 | 2550 | 2800 | 2800 | 2850 | 3000 | |
| Slide Surface Size | F.B. | mm | 500 | 580 | 650 | 700 | 750 | 800 | 850 | 1000 |
| L.R. | mm | 1360 | 1500 | 1850 | 2100 | 2300 | 2300 | 2400 | 2500 | |
| Slide Opening | F.B. | mm | 600 | 800 | 800 | 900 | 980 | 1000 | 1050 | 1200 |
| L.R. | mm | 550 | 700 | 700 | 700 | 850 | 900 | 950 | 1050 | |
| Air Cuhion | Preure | kn | 60 | 100 | 100 | 100 | 100 | 100 | 150 | 150 |
| Stroke | mm | 50 | 70 | 70 | 70 | 70 | 70 | 100 | 100 | |
| Motor Power | kw | 15 | 22 | 22 | 30 | 37 | 45 | 55 | 75 | |
