Home > Products > Leveling Machine > W43S-3X2500 Six-fold Roller-type &common (economical ) Leveling Machine(W43S-2X1300)
W43S-3X2500 Six-fold Roller-type &common (economical ) Leveling Machine(W43S-2X1300)
- Xiamen Port China
- T/T
You May Like
-
High Leveling Precision Six-fold Roller-type Leveling Machine for W43S-2X1300
-
Hydraulic CNC Unrolling and Leveling Machine
-
CYP-1300D Decoiler and Leveler Line
-
CYP-1300A Decoiler and Leveler Line
-
Heavy Duty Electro-hydraulic Synchronous CNC Bending Machine
-
Micro Electro Hydraulic Synchronous CNC Bending Machine
Product Details
| Place of Origin | Fujian, China | Brand Name | chengyang | |
| Model Number | W43S-2X2500 |
Product Description
Six-fold Roller-type Leveling Machine for W43S-2X2500
1. Brief introduction:
The frame structure with high strength and rigidity
High surface protection for processed material
High leveling precision

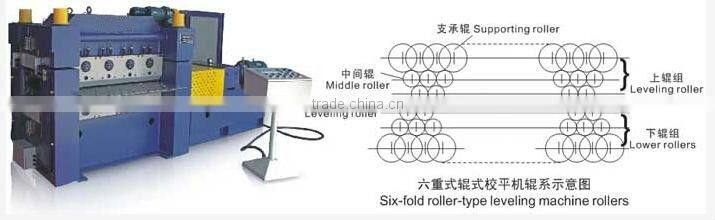

Three layers upper: support, middle and leveling rollers
Data display, PLC, video-data input, edit, modification and store
Most advanced leveling machine in this industry
2.Major elements:
It is special suitable for the leveling of stainless sheet, 2-metal sheet, metal sheet with printed and plated,
nonferrous metal etc.
The range of leveling plate thickness: 1.2mm-10mm
The range of leveling plate width: 800-2500mm
3. Main Specifications:
Model | Max | Min | Max | Yield | Leveling | Leveling | Number | Leveling | Motor | Dimension |
W43S-2X800 | 2 | 0.6 | 800 | 360 | 48 | 50 | 21 | 6 | 7.5 | 3.59X1.58X1.4 |
W43S-2X1300 | 2 | 0.6 | 1300 | 240 | 50 | 55 | 19 | 10~60 | 55 | 5X1.26X1.8 |
W43S-3X1600 | 3 | 0.8 | 1600 | 240 | 65 | 70 | 15 | 10~30 | 45 | 3.59X1.58X1.4 |
W43S-3X2500 | 3 | 0.8 | 2500 | 300 | 75 | 80 | 19 | 10 | 37 | 7.2X3.27X1.74 |
W43S-6X2000 | 6 | 1.5 | 2000 | 360 | 95 | 100 | 13 | 8.6 | 45 | 6.62X3.53X1.7 |
4.pictures
