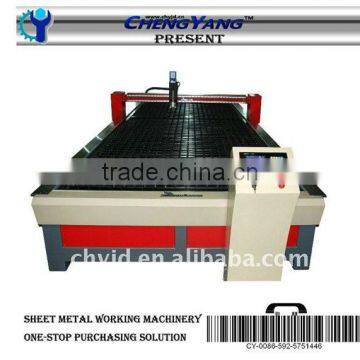

CNC Plasma Cutting Machine for Thin Plate

Model                        Processing Scale
XHSD-1325                1300x2500mm
XHSD-1330                1300x3000mm
XHSD-1530                1500x3000mm
XHSD-1540                1500x4000mm
XHSD-2060                2000x6000mm

Main technical parameters:
1. Maximum operational speed: 15,000mm/min
2. Cutting precision: ±1‰
3. Repositioning precision: ±0.01mm
4. Maximum torch lifting distance: 120mm
5. Input voltage: 220V/380V/50HZ
6. Weight: 1,000KG

 Characteristics:
          1. Advanced XHSD plasma numerical controlled system, completely offline work and human-oriented
              operation;
          2. Several software compatibility: compatible with CorelDraw, AutoCAD, Wentai and other software;
          3. Equipped with infrared positioning device to assure processing and re-positioning precision;
          4. Highly efficient and carefree operation: continuous carving against power failure and breakpoint,
              estimate of processing time, automatic tool aligning, real human-oriented design;
          5. Linear motion guide to guarantee the cut of work piece is vertical with high precision and without
              nodulation;
          6. The machine structure is rational with crossbeam using standard profile; it works with optical
              coupler isolation
              control and features super-strong anti-interference capability;
          7. It could cut aluminum, steel, iron, copper, and Ti-gold sheet as well as other conductive metals
              with high efficiency;
          8. Fine mesh net and waste collection drawer contribute to work convenience while automatic dust
              vacuum system
              makes work environment cleaner;
          9. It could be equipped with Hypertherm plasma generator imported from America or plasma generator
              made in China as required by users;
         10. It is optional on servo system, driving system, working platform and dust collection device. Besides,
               full version of authentic software would come with the machine.

         Application:
              Outer frame processing of electromechanical products, advertising signs, decoration, garden iron art,
        vehicle manufacturing, ship building, electric appliances, metal plate materials cutting and other industries.
