Home > Products > Microduct Endstop > HDPE Microduct endplug
HDPE Microduct endplug
- 800000 Piece / Pieces per Month
- Shanghai Ningbo etc.
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Material | Plastic | Technics | Casting | |
| Type | Cap | Place of Origin | Zhejiang, China | |
| Model Number | Micro-duct endplug MSC-3 | Brand Name | Reepure | |
| Shape | Equal | Head Code | Square |
Product Description

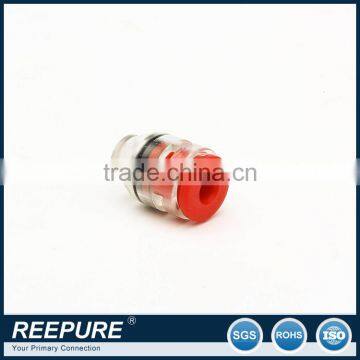

Micro-duct endplug
To keep MicroDuct networks free of debris, seal the system with Micro-duct endplugs. With the same functionality as the Push-Fit Connectors, installation simply involves pushing the MicroDuct into the Micro-duct endplug. The Micro-duct endplug can be attached and removed 10 times while still maintaining the same high performance characteristics.
Micro-duct endplugs operate at 15 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).
Micro-duct endplug Feature:
Body Material: | PC, impact resistant |
Collect Material: | POM, stainless steel teeth |
O-rings Material: | Nitrile rubber |
Blowing Pressure: | 16 bar |
Burst Pressure: | 25 bar |
Temperature Range: | -10 ~ 60°C |
Insertion force: | 50N max (5kg) |
Micro-duct endplug Specification:
Reepure code | Description |
MEC-3 | 3mm end connector |
MEC-4 | 4mm end connector |
MEC -5 | 5mm end connector |
MEC -6 | 6mm end connector |
MEC -7 | 7mm end connector |
MEC -8 | 8mm end connector |
MEC -10 | 10mm end connector |
MEC -12 | 12mm end connector |
MEC -12.7 | 12.7mm end connector |
MEC -14 | 14mm end connector |
MEC -16 | 16mm end connector |
MEC -18 | 18mm end connector |
