Home > Products > Microduct Endstop > HDPE Micro duct end stop fitting
HDPE Micro duct end stop fitting
- Shanghai Ningbo etc.
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Material | Plastic | Technics | Casting | |
| Type | Cap | Place of Origin | Zhejiang, China | |
| Model Number | Micro duct end stop connector MEC -14 | Brand Name | Reepure | |
| Connection | Female | Shape | Equal | |
| Head Code | Square |
Product Description

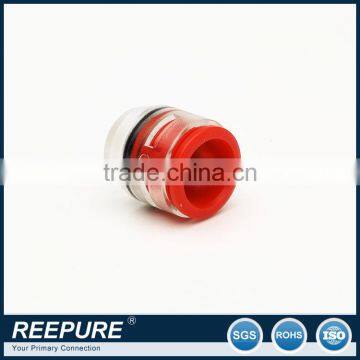

Micro duct end stop connector
To keep Micro-Duct networks free of debris, seal the system with Micro duct end stop connectors. With the same functionality as the Push-Fit Connectors, installation simply involves pushing the MicroDuct into the Micro duct end stop connector. The Micro duct end stop connector can be attached and removed 10 times while still maintaining the same high performance characteristics.
Micro duct end stop connectors operate at 16 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).
Micro duct end stop connector's Feature:
Body Material: | PC, impact resistant |
Collect Material: | POM, stainless steel teeth |
O-rings Material: | Nitrile rubber |
Blowing Pressure: | 16 bar |
Burst Pressure: | 25 bar |
Temperature Range: | -10 ~ 60°C |
Insertion force: | 50N max (5kg) |
Micro duct end stop connector's Specification:
Reepure code | Description |
MEC-3 | 3mm Micro duct end stop connector |
MEC-4 | 4mm Micro duct end stop connector |
MEC -5 | 5mm Micro duct end stop connector |
MEC -6 | 6mm Micro duct end stop connector |
MEC -7 | 7mm Micro duct end stop connector |
MEC -8 | 8mm Micro duct end stop connector |
MEC -10 | 10mm Micro duct end stop connector |
MEC -12 | 12mm Micro duct end stop connector |
MEC -12.7 | 12.7mm Micro duct end stop connector |
MEC -14 | 14mm Micro duct end stop connector |
MEC -16 | 16mm Micro duct end stop connector |
MEC -18 | 18mm Micro duct end stop connector |
