Product Details
| Place of Origin | Zhejiang, China | Brand Name | REEPURE | |
| Model Number | AC-68 |
Product Description

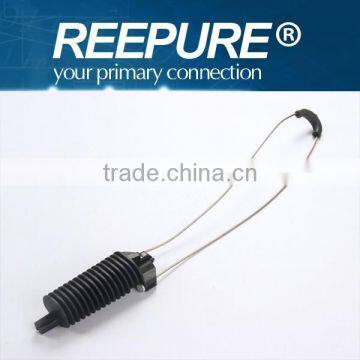

Dead end anchor
The Dead end anchor has a conical shape, a pair of wedges and a stainless steel bail.
Specification of Dead end anchor:
Reepure code | Capacity (mm) | Min. Breaking Load |
AC-68 | Anchoring clamp 6-9mm | 450N |
Bail Lenth of the Dead end anchor : 260mm,360mm,500mm
Material of Dead end anchor:
Material | ||
Body | Wedge | Bail |
UV preotected thermoplastic | UV preotected thermoplastic | Stainless steel |
Installation Method of Dead end anchor :
1. hang the clamp to the pole hardware by passing the free end of the bail through the pole fitting.
2. Pull back the wedges and place them around the cable.
3. Push the wedges forward with your hand to initiate the gripping on the cable.
4. When the cable is brought to its stringing load, the wedges move forward in the concial body and grip the cables.
Standard Export Packaging, OEM is also acceptable.
