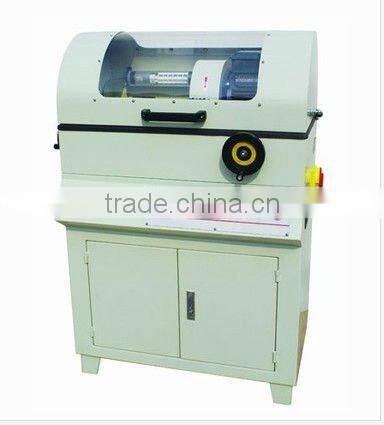

MODEL QG-4A (RAPID CLAMPER) MULTIFUNCTIONAL CUTTING MACHINE
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Model Number | QG-4A |
Product Description
Specifications
This machine is used for cutting the metallographic specimens with irregular shapes such as cylinder, polygon etc., so as to obsThis machine is used for cutting the metallographic specimens with irregular shapes such as cylinder, polygon etc., so as to observe the metallographic and lithofacies structure of the material. It adopts the fully-sealed structure with double shields, which can guarantee the safety of operator. The cooling system with good coolant can take away the heat of cutting so as to protect the structure of specimen from being burned. During cutting, the specimen can be adjusted in any angles, which helps to avoid the minor burning when the specimen is cut to fall. At the same time the cutting cross section is increased, thus the utilization ratio of cutting sand wheel is improved. This machine, featuring convenient operation and reliable safety, is the necessary equipment for specimen preparation in laboratories, college researching institutes and factories.
Technical specifications
1. Max. Cutting diameter: Ø65mm
2. Rotating speed: 2800 rpm
3. Diameter of cutting sand wheel: 250 x 1.5 x 32 mm
4. Power supply: 380V three phases, 50Hz
5. Motor: 1.5 KW
6. Dimensions: 87 × 55 × 112 cm
