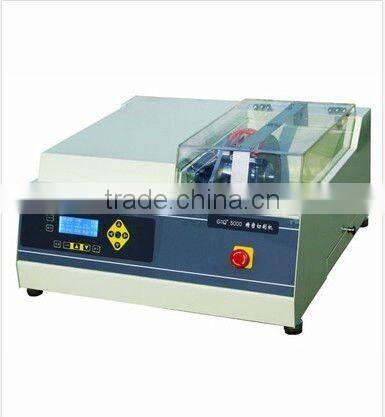

MODEL GTQ-5000 PRECISE CUTTING MACHINE
- SHANGHAI
- T/T Credit Card
You May Like
Product Description
Specifications
It is used for cutting various types of materials with minimal sample deformation, especially cutting large scale specimen.
This machine is designed according to investigation and researches on the market and customers’ requirements. It is used for cutting various types of materials with minimal sample deformation, especially cutting large scale specimen. It represents the advanced level in our country. This machine is suitable for wide hardness range of specimen. It is easy-to-use and on the safe side. It is an ideal option for the lab of factories, science and research institutions and universities.
Features:
Set up feed rate in advance (0-30mm)
Serial precision cut
Program control and Liquid Crystal Display (LCD) with backlighting
User defined cutting data-base
Two clamp
Large and close cutting compartment with imported gate style safety switch
Positioning to 2um
Built-in Recirculating cooling System
Serial cuts to a desired length and thickness
Technical specifications
1. Feed rate: 0-30mm/min (0.1 increments)
2. Abrasive blade diameters: 100mm,125mm,150mm, 200mm
3. Maximum work length: X-axis 90mm; Y-axis 200mm
4. Rotating speed: 300-5000rpm
5. Max. cutting diameter: Φ60mm
6. Cutting power: 1100 W
7. Power: 220V 50HZ
