Product Details
| Place of Origin | Henan, China | Brand Name | Audley | |
| Model Number | SSA-002 |
Product Description
Specifications
1. CE certificate2. Laminated paper, 500gsm MAX thickness and common paper
3.SGS certificated

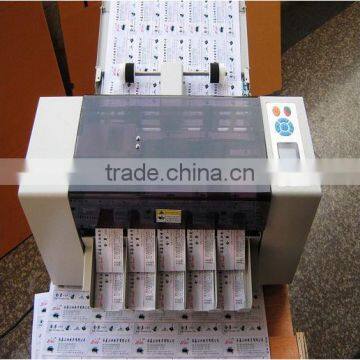

A3+Business Name Card Cutting Machine,card cutting machine
A3+ Electric Business Card Cutting Machine
Way of cutting | Longitudinal: rolled cutting by a roller; horizontal: cutting by a lateral long cutter |
Way of paper feeding | Automatic paper feeding in double rubbing way |
Size of paper | A3+(320×480mm); A3(297×420mm); SRA3(320*450mm), |
Thickness of paper | 0.20mm(180g/m²)---0.30mm(350g/m²) |
Paper nature | Common paper, quality paper |
Cutting speed | For namecards, about 100pcs/min |
Cutting size | Longitudinal: 55 or 54mm and 89(or 85,90,95)mm Horizontal: 40-250mm, adjustable |
Volume of paper | Maximum 12pcs (about 0.25mm thick) for namecards or total thickness 3mm |
Volume of namecard | 180g/m² 90×5pcs 250g/m² 70×5pcs |
Mechanical dimension | 570mm×540mm×280mm (L x W x H) |
Ambience of use | -15∼+40 humidity 35%~70% |
Weight | About 24Kg |
Power supply | AC 90~260V, 50/60HZ, 0.5A |
Way of adjustment to cut different thickness of paper
When ex-factory, the thickness adjustment needle points to the middle, which means cutting 250g(about 0.25mm) thickness paper.
(A) If cutting paper that thicker than 250g(or 0.25mm):
1. Loosen the lock nut
2. Rotate the needle to "+" direction by cross-screwdriver. (It's 0.02mm thickness corresponding to each space)
3. Tighten the lock nut.
(B) If cutting paper that thinner than 250g(or 0.25mm):
1. Loosen the lock nut
2. Rotate the needle to "-" direction by cross-screwdriver. (It's 0.02mm thickness corresponding to each space)
3. Tighten the lock nut.
Payment terms:T/T,Western Union,Paypal
Delivery time:within 5 days after receiving payment
Transportation:by DHL,FEDEX ,by plane
