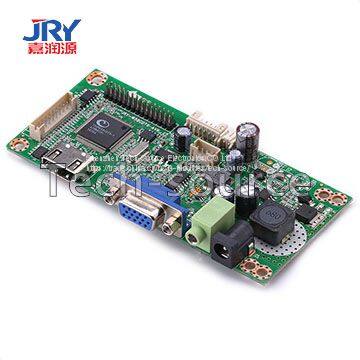

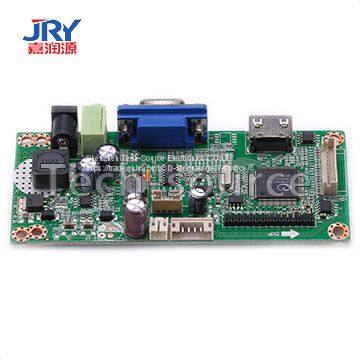

FHD LED Display Control Board, VGA+HDMI

JRYP19B - F12D (400 ma) is a new integration of the integration of LED backlight driver LCD control main board, control motherboard solution using TSUMU58CDT9-1 + BIT3267 integration scheme
Main chip using the latest stars of the semiconductor chip TSUMU58CDT9-1, constant current backlight driver chip is BITEK high-performance BIT3267 scheme in Taiwan, the constant current backlight driving chip has perfect short circuit protection function, high precision control constant current output current

LED backlight driver with the method of DC dimming control, drive current hardware setting maximum output current is 400mA, a backlight driving power can be compatible to within 20W LED panel
LED backlight under 400mA output current can be through the software to adjust the maximum output drive current control
LED backlight driving voltage master control chip (BIT3267) according to the LED screen, LED lights series of load automatically adjust the output voltage

Motherboard reserved the commonly used LED backlight interface, can be compatible to most commonly used on the market of LED panel
Support 1920 * 1080p and below the LED panel

It completes output from PC VGA analog signals or HDMI digital signal to the LCD module to support an LVDS signal conversion
Support the HDMI signal input, HDMI input support HDMI1.3 interface signal, HDMI1.4, HDCP1.2, DVI1.0 standards
This design is mainly used for matching TFT LED panel, achieve the highest resolution can reach WXGA simulation of R, G, B the representation of the input signal, can supports to 24-bit color reproduction, up to 16.7 million pixels, the ADC frequency of 165MHz
With DCR (dynamic contrast adjustment), color, color engine special features, such as the color reappearance more vivid, more colorful, more vivid, supports HDCP function at the same time
Automatic detection can realize synchronization
Synchronous detection method that requires the separation of use line field synchronization signal With exquisite OSD interface style, wide selection of OSD language
