Home > Products > Forklift > 3 Tons Diesel Powered Forklift with YANMAR 4TNE98 Engine

3 Tons Diesel Powered Forklift with YANMAR 4TNE98 Engine

FOB Price

USD $1 - $7,500 / Set

1 Set(Min.Order)

Port Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	HUAHE	Model Number	HH30Z-W4-D
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	3.0T	Max. Lifting Height	6000mm
Min. Lifting Height	3000mm	Fork Length	1070mm
Fork Width	125mm	Overall Dimensions	2680X1225X2120mm
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

3.0T diesel forklift truck
World famous engine of forklift truck
forklift truck with Long service
electronic clutch
CE

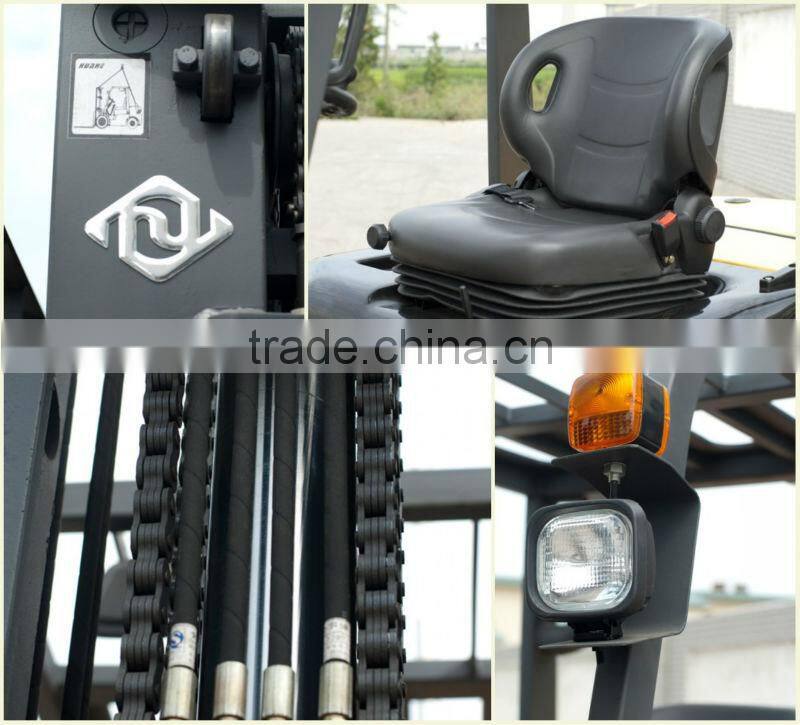

•When the fork lower to almost touch ground, •The seat can be adjusted back and front.

the cargo fork will decelerate to reduce impact The loading capacity of the seat can be

and noise. automaticlly according to body weight.

This series forklift trucks are widely used in factories, warehouses, wharves, ports and so on for loading, unloading and transporting of the packaged goods, besides, can be used for the handling of the bulk goods and unpackaged goods after equipping other attachments of forklift trucks.

Generals	Model		Unit	HH30	HH30Z
	Power type			Diesel
	Rated capacity		Kg	3000
	Load center		mm	500
Dimensions	Lift height		mm	3000
	Free lift height		mm	130
	Fork size (L×W×T)		mm	1070×125×45
	Mast inclination F/R		Deg	6°/12°
	Front overhang		mm	490
	Overall Dimensions	Length to face of fork	mm	2680
		Overall width	mm	1225
		Mast lowered height	mm	2095
		Overhead guard height	mm	2120
	Turning radius		mm	2460
	Min. right angle aisle width		mm	2105
Performance	Travel speed	Unload I/II	Km/h	9/20
		Full load I/II	Km/h	8.8/18.5
	Lift speed		mm/s	480
	Max. grade ability		%	20
	Max. drawbar pull		Kn	13
	Self weight		Kg	4400
Wheels & Tires	Tires	Front		28×9-15-12PR
		Rear		6.50-10-10PR
	Tread	Front Q	mm	1000
		Rear S	mm	970
	Wheelbase		mm	1700
	Min. ground clearance (unload/full load)	Mast	mm	152/132
		Frame	mm	158/138
Drive units & Control	Battery		V/Ah	12/90
	Engine	Model		YANMAR 4TNE98
		Rated output	Kw/rpm	44.4/2300
		Rated torque	N.m/rpm	187-207/1700
		Displacement	cc	3318
	Transmission	Type		Hydraulic
		Shift Fwd/Rwd		1/1 Power shift
	Operating pressure		Mpa	17.5
