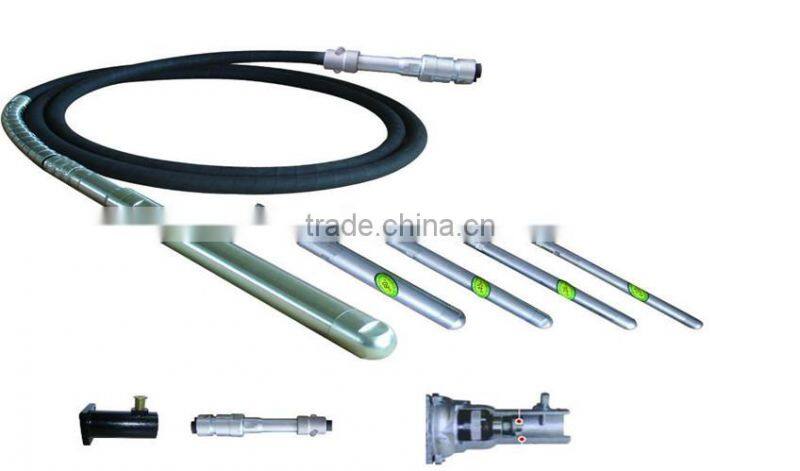

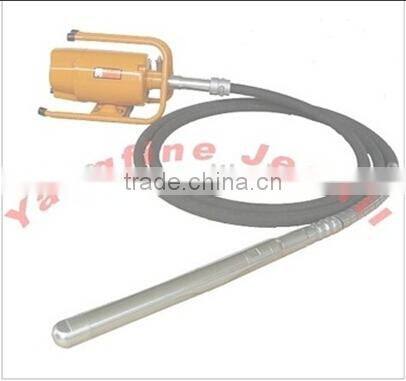

Concrete Vibrator Shaft
- Qingdao
- T/T
You May Like
Product Details
| Model Number | YF-32 . | Place of Origin | Shandong, China | |
| Brand Name | yangfine |
Product Description
YFJ- concrete vibrator USE the pendulume principle ,,,,,,
3000rpm of the drive unit translate viathe flexible shaft into 12000 vibrators per minute in the poker head ,the low output speed ensures high reliability and extended service life,can be driven by electrical motor, petrol or diesel engine.with standerd poker diameters.
Festures:Long life span,easy to maintaince,low noise,it is popular in the market
Model | Vibrator Head Dia.*Length | Vibrating Frequency (VPM) | Rotational Speed (RPM) | Vibrating Amplitude (mm) | Diameter of Flexible Hose (mm) | Diameter of Flexible Shaft (mm) | Length (M) | Weight (kg) |
YFJ-32 | 32*388 | 12,000~14,000 | 3,000~3,600 | 1.4 | 30 | 10 | 6M (5-8M) | 12 |
YFJ-38 | 38*465 | 1.6 | 30 | 10 | 14.5 | |||
YFJ-45 | 45*470 | 2.0 | 30 | 10 | 16 | |||
YFJ-60 | 60*473 | 2.4 | 32 | 13 | 21 |
