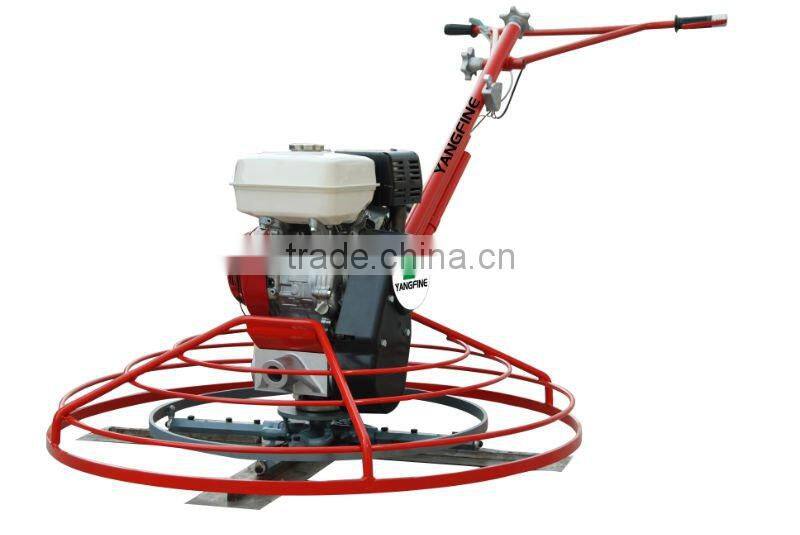

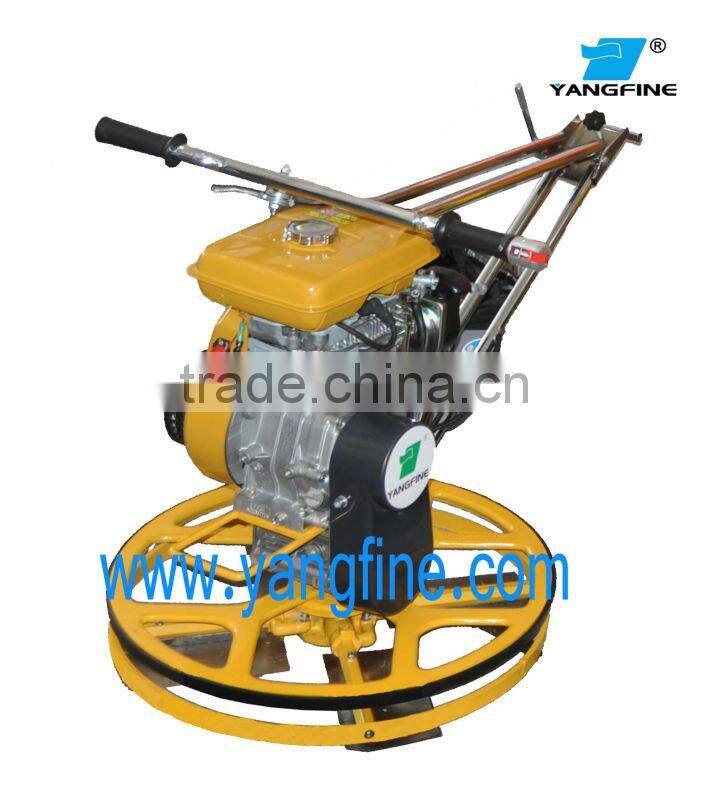

Yangfine PF36-H Diesel Concrete Finishing Trowel Machine
- Qingdao
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Yangfine | Model Number | PF36-H | |
| Power Source | Gasoline | Certification | ISO9001-2008 |
Product Description
Yangfine Jeonil Machinery
Skype:yangfinejeonil01
Mobile:0086-18763531347
Web:

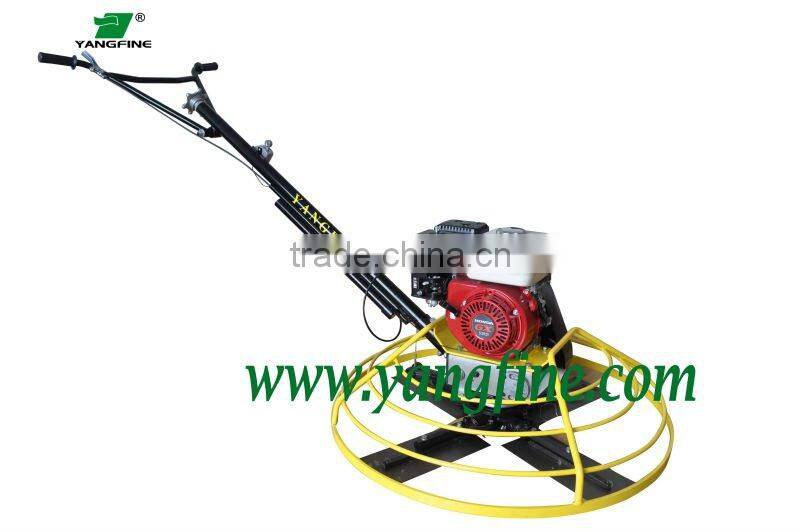

Power Trowel:
Use mainly in concrete floating and finishing, with different types of blades and pans used, through trowelling and weight of the machine to produce a flat, level and dense surface.
The enlarged diameter of the guard ring allows trowelling in larger areas
1, Over-built gearbox assures long life.
2,Heavy-weight design to assures a superior finish.
3,Height adjustable handle, dead_man switch available , assures operator comfort and easy control.
4,Centrifugal safety switch, shuts the engine down in the event of the operator loosing control of the unit.
5,Screw control ensures precise blade adjustment.
Model | ET24-H | ET24-R | ET32-H | ET32-R | PF36-H | PF36-R | PF46-H | PF46-R | ||||||||
Dimension-mm(in) | Folded | 950×610×720 (68×24×38) | 1040×780×720 (41×31×28) |
2100×950×1010 (83×37×40) |
2100×1135×1010 (83×45×40) | |||||||||||
Unfolded | 1730×610×970 (68×24×38) | 1820×780×970 (72×31×28) | ||||||||||||||
Guard Ring Diameter-mm(in) | 610(24) | 780(31) | 950(37) | 1135(45) | ||||||||||||
Operating Weight-kg(lb) | 56(123) | 58(128) | 6 2(137) | 64(141) | 82(181) | 84(185) | 95(209) | 104(229) | ||||||||
Handle Type | Foldable | Straight | ||||||||||||||
Gearbox | Small | Heavy-Duty | ||||||||||||||
Combo Blade Size-mm(in) | 230×120(9×5) | 310×150(12×6) | 350×150(14×6) | 450×150(18×6) | ||||||||||||
Max. Blade Pitch Angle-° | 20 | 30 | ||||||||||||||
No. of Blades | 4 | |||||||||||||||
Blade Operating Speed-rpm | 85-138 | 61-131 | ||||||||||||||
Engine | HondaGX160 | Robin EY20 | HondaGX160 | Robin EY20 | HondaGX160 | Robin EY20 | Honda GX270 | Robin EY27 | ||||||||
Engine Type | 4-Stroke Gasoline | |||||||||||||||
Max. Power Output-hp(kw) | 5.5(4.1) | 5.0(3.7) | 5.5(4.1) | 5.0(3.7) | 5.5(4.1) | 5.0(3.7) | 9.0(6.7) | 9.0(6.7) | ||||||||
Max. Engine Speed-rpm | 3600 | |||||||||||||||
ET24 Power Trowel
ET32 Power Trowel
PF36 Power Trowel
