Home > Products > Woodworking Thicknesser Machine > Heavy Duty Thickness Machine with four column and electrical up and down SH-430 with Max.working width 430mm

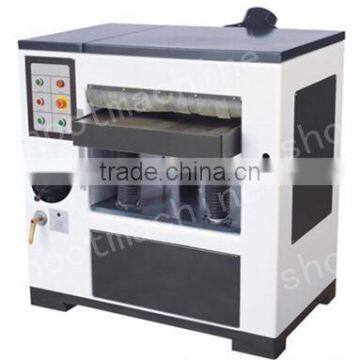

Heavy Duty Thickness Machine with four column and electrical up and down SH-430 with Max.working width 430mm
Negotiable
/ Piece
1 Piece(Min. Order)
- Qingdao Port
- T/T
You May Like
-
Heavy Duty Thickness Machine with four column and electrical up and down SH-530 with Max.working width 530mm
-
Heavy Duty Thickness Machine with four column and electrical up and down SH-630 with Max.working width 630mm
-
Heavy Duty Thickness Machine with four column and electrical up and down SH-830 with Max.working width 830mm
-
Single-side Wood-working Thicknesser SHMB104H with Max.planing width 400mm and Max.planing thickness 200mm
-
Single-side Wood-working Thicknesser SHMB105H with Max.planing width 500mm and Max.planing thickness 200mm
-
Single-side Wood-working Thicknesser SHMB106H with Max.planing width 630mm and Max.planing thickness 200mm
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | SHOOT | Model Number | SH-430 | |
| Dimension(L*W*H) | 1000x1015x1190mm | Weight | 600kg | |
| Certification | CE |
Product Description
| Heavy Duty Thickness Machine with four column and electrical up and down | |
| Feature | |
| The body is with heavy-duty steel and with special heat treatment process, better stabillity and lower noise. | |
| Stable high speed edge feeding system, 18m/min. And with four frequency conversion box, convenient for the users to adjust the feed rate depending on the workpiece surface quality. Improve production efpciency. | |
| The work table is with special treatment process, better durability and no deformation. | |
| Segnented edge feeding system and segmented wheel with helical structure, ensures edge feeding more smooth and strong. | |
| Heavy cutting spindle equipped with SKF high-speed bearings, more smooth cutting and lower noise. | |
| All the parts are made with pne processing of high-precision CNC Center, and this ensures stable and efpcient operation. | |
| The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator. | |
| Working table has four pillars to up and down, more stable | |
| Model | SH-430 |
| ing width | 430mm |
| Working thickness | 3~300mm |
| Max.cutting capacity | 5mm |
| ing length | 230mm |
| White steel knife | 430x35x3mm |
| Ctuuer head diameter | 120mm |
| Installed power | 4.75kw |
| Main motor power | 4kw |
| Up and down motor power | 0.75kw |
| Voltage/frequency | 380v/50Hz |
| Main spindle rotation speed | 6200r/min |
| Feeding speed | 5/8/12/18m/min |
| Dimention | 1000x1015x1190mm |
| Net weight | 600kg |
