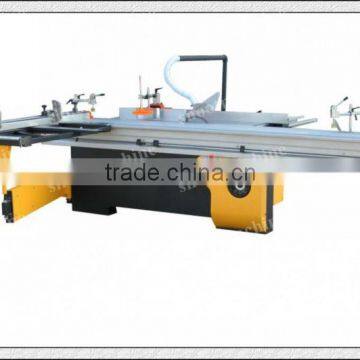

Precision Panel Saw Machine With Saw and Moulder SHM6132-TZ.GB With Dimensions Sliding Table 3200x380mm
Negotiable
/ Piece
1 Piece(Min. Order)
- Qingdao Port
- T/T
You May Like
-
Wood Cutting Panel Saw SH6132ZGO With 3200x320mm Europe Style Column Guide Rail and 90degree Tilting and 4kw Motor
-
Wood Cutting Panel Saw SH6132TZC With Length of Sliding Table 3200x360mm and 45degree Tilting and 4kw Motor
-
Wood Cutting Panel Saw SH6130ZGO With 3000x320mm Europe Style Column Guide Rail and 90degree Tilting and 4kw Motor
-
Wood Cutting Panel Saw SH6130TZC With Length of Sliding Table 3000x360mm and 45degree Tilting and 4kw Motor
-
Wood Cutting Panel Saw Machine With Digital Display SH6130STC With Digital Display and 3000x360mm Beeline Guide Rail
-
Wood Cutting Panel Saw With Digital Display SH6130STG With Digital Display and 3000x360mm Column Guide Rail and 45degree Tilting
Product Details
| Type | Other, Table Panel Saw, Table Panel Saw | |||
| Use | Other, Woodworking, Woodworking | Style | Other, Horizontal, Horizontal | |
| Place of Origin | Shandong, China | Brand Name | SHOOT | |
| Model Number | SHM6132-TZ.GB | Power(W) | 750/2200/4000W | |
| Dimension(L*W*H) | 2200x1170x1100 mm | Weight | 740/870KG | |
| Certification | CE |
Product Description
| Precision Panel Saw Machine with Saw and Moulder | |
| Feature | |
| Apply to processing all kinds of density boards,shaving boards,wood-base panels,ABS panels,PVC panels ,organic glass plates and solid wood and others with wood structure and simiar hardness, Movable table guide track is plating chromium steel balls structure,exact and durable. Made of high-strength extruded aluminum alloy,movable table is high in strength and won’t bend. With oxidation treatment,movable table surface is beautiful and hardwearing. Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer. | |
| *Digital indicator is option | |
| *ALTENDORE Aluminium Sliding Table | |
| *Two Kinds of Function: Saw and Moulder | |
| Model | SHM6132-TZ.GB |
| Dimensions sliding table | 3200X380mm |
| Max.cut capacity | 3200mm |
| Max.width of cut between saw blade and rip fence | 1250mm |
| Saw blade | 300mm(250-300) |
| Max.height of cutφ300mm | 75mm |
| Max.height of cut with saw bladeφ300mm at 45° | 55mm |
| Speed of main saw blade | 4000rpm |
| Spindle diameter | 30mm |
| Tilting saw blade | 0-45° |
| Main motor | 4kw |
| Scoring saw blade | 120mm |
| Speed of scoring saw | 8000r/min |
| Spindle of scoring saw | 20mm |
| Auxiliary motor power | 0.75kw |
| Lifted by electric moter | 25kw |
| MOULDER | |
| Arbor dia. | φ30mm |
| Arbor useful height | 85mm |
| Arbor speed | 1750r/min or 3500r/min or 6700r/min |
| Use moulder hood | |
| Cutter rotating Max. dia. | φ180mm |
| Use shaping hood | |
| Cutter rotating Max. dia. | φ140mm |
| Motor power | 2.2kw |
| Net weight | 740kg |
| Gross weight(wooden packing case) | 870kg |
| Packing case | 2200×1170×1100 mm |
