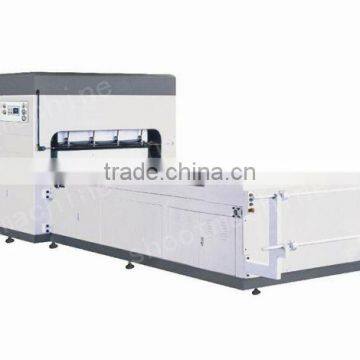

Membrane Press Machine with Negative and Positive Press SHZFY2500HX2 with Working table size 2550x1250x40mm
Negotiable
/ Piece
1 Piece(Min.Order)
- 200 Piece / Pieces per Month
- Qingdao Port
- T/T Credit Card
You May Like
-
Membrane Press Machine with Negative and Positive Press SHZFY2500X2 with Working table size 2550x1250x40mm
-
Vacuum Membrane Pressing Machine SH2300B-2 with Working table size 2600x1100mm and Total power 20KW
-
Vacuum Membrane Press SH2300C-2 with Overall dimensions 2750x2650x1550mm and Worktable size 2300x1100mm
-
Auto Vacuum Membrane Press SH2300A-2Z with Overall dimensions 7900x1800x1800mm and Worktable size 2300x1100mm
-
Semi-Auto Vacuum Membrane Press SH2300A-2 with Overall dimensions 7900x1800x1800mm and Worktable size 2300x1100mm
-
Auto Vacuum Membrane Press SH2300A-1Z with Overall dimensions 5300x1800x1800mm and Worktable size 2300x1100mm
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | SHOOT | Model Number | SHZFY2500HX2 |
Product Description
| Membrane Press Machine with Negative and Positive Press | |
| Model | SHZFY2500HX2 |
| Working table size | 2550x1250x40mm |
| Total power | 57.2Kw |
| Hoting power | up hoting 36Kw, down hotting 12Kw |
| Feeding motor power | 0.75Kw*2 |
| Hydraulic motor power | 5.5Kw |
| Vacuum pump motor power | 2.2Kw |
| Vacuum | -0.1Mpa |
| Positive pressure | 0.4Mpa-0.5Mpa |
| Negative | -0.8Mpa |
| Air pressure | 0.6-0.8Mpa |
| Max. Working temperature | 180℃ |
| Vacuum pump air speed | 63m³/h |
| Oil cylinder dia. and quantity | Φ140mm*6 |
| Hoting style | Heat conducting oil heating (up), aluminum plate electric heating (down), high heat dissipation electric heating tube (air heating) |
| Control system | PLC control |
| Electrical | 380V,50Hz,3PH,4*15mm² electrical wire |
| Overall dimensions | 11000x2250x2050mm |
| Weight | 11000KGS |
