Home > Products > Blade Grinding Machine > CNC Automatic double sides sharpen machine of circular saw machine SHCNC-110 with Circluar saw dia. 100-460mm

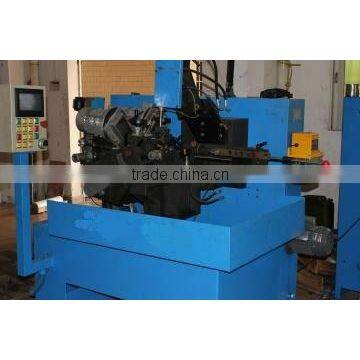

CNC Automatic double sides sharpen machine of circular saw machine SHCNC-110 with Circluar saw dia. 100-460mm
Negotiable
/ Piece
1 Piece(Min.Order)
- Qingdao Port
- T/T Credit Card
You May Like
-
CNC Automatic double sides sharpen machine of circular saw machine SHCNC-110B with Circluar saw dia. 100-810mm
-
Blade Grinder SHT32A with range of grinding 1.5-32mm and rpm of grnding wheel 4200RPM
-
Auto Saw Sharpening Machine for saw blade SF11-18 with Sharpening Saw blade width 80-180mm and tooth range 19-38mm
-
Digital display jig grinder MGX2945B with table size 450X800mm
-
Saw Line Machine SH2680B with Max. width 150mm and Max. teeth space 35mm
-
Gear Grinding Machine SH1116 with Max. width 150mm and Max. teeth space 35mm
Product Details
| Place of Origin | Shandong, China | Brand Name | SHOOT | |
| Model Number | SHCNC-110 | Blade Material | Tungsten Carbide Steel | |
| Finishing | Nitride | Size | 1450x1500x2000mm |
Product Description
| CNC Automatic double sides sharpen machine of circular saw machine | |
| Feature | |
| 1.The machine work stability, high precision, speed fast, Multi-function | |
| 2.Strong body, 6-8mm steel sheet body, laser welding and precision | |
| 3.The machine have strong powerful, absolute hydraulic system, pressure max:40kg/cm2 | |
| 4.Famous LCD display, display clear, long-period | |
| 5.Sander wheel sharpen travel can adjust:0-28mm, and with water sharpen equipment | |
| 6.Sander wheel sharpen forward speed---stepless speed regulating | |
| 7.Sander wheel sharpen quickly near, constant speed sharpen, save time, increase of efficiency | |
| 8.Teeth front angle and teeth back angle can electrical adjust by division circle | |
| 9.Diamond sharpen sander wheel dia.:80/100mm(4 inch) | |
| 10.Max. feeding speed:20 teeth/min. | |
| 11.Control panel of 7 inch big color display screen, easy operation control panel, with prcinstall function: | |
| *dynamic input sharpen teeth number, save working time | |
| *dynamic display sharpen teeth | |
| 12.The machine have strong function, sharpen many kinds of complex teeth model, once sharpen finish difference teeth width of circular saw | |
| 13.*It have 4 pcs chromate treatment spindle for circular saw with machine:2 pcs diameter 10mm;2 pcs diameter 12mm | |
| *It have hold saw of 20mm, 22mm, 25.4mm, 30mm, 35mm, 45mm, 60mm, 75mm, 80mm circular saw with machine and standard spindle | |
| Model | SHCNC-110 |
| Voltage | 380v/50Hz |
| Circluar saw dia. | 100-460mm |
| Circluar saw hole dia. | 10-120mm |
| Max. Saw thickness | 8mm |
| Teeth distance | 7-100mm |
| Radia back angle | -4---+6 degree |
| Tangential back angle | 0----+6 degree |
| Sander wheel motor | 1.1kw |
| Water pump motor | 1.1kw |
| Hydraulic pump motor | 750w |
| overall size | 1450x1500x2000mm |
| N.W./G.W. | 1200kgs/1400kgs |
