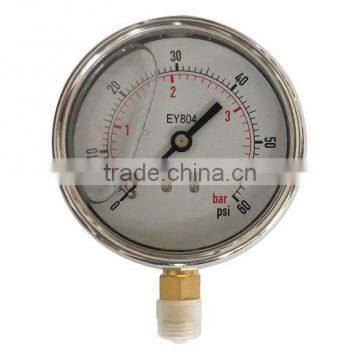

Air Compressor Pressure Gauge

Specifications

Air Compressor  Pressure Gauge

Size: 2.5"(63mm), 4"(100mm), 6"(150mm).
Accuracy: ±1.6% of full scales for 2.5"(63mm) ±1.0% of full scales for 4"(100mm),6"(150mm).
Range available ( no stock): -30"Hg~0 (vacuum) -30"Hg~0~200psi (compound) 0 ~ 15psi ~ 10000psi (pressure)
Working Pressure: Steady: 3/4 of full scale Fluctuating: 2/3 of full scale Short time : full scale
Operating Temperature: Ambient: -4°F to 140°F (-20°C to +60°C)

Media: max. 140°F (+60°C)
Service Fluid: Compatible gases and liquids
Housing: Stainless steel case and bayonet ring
Windows: Safety glass

Liquid filled: Glycerin
Bourdon Tube: Stainless steel

30"Hg~800psi C-Type, 800 psi to 6000 psi Coil-Type
Movement : Stainless steel C
onnection: Stainless steel 1/4" for 2.5"(63mm) 1/2" for 4"((100mm), 6"(150mm) Thread: BSP , BSPT, NPT ,or metric thread.
Dials and pointer: Aluminum White background, Black or black and red lettering. With customer logo is available.
Operating temperature: -20°C ~ 60°C (-4 °F ~ 140 °F)
Working pressure: Steady: 3/4 of full scale Fluctuating: 2/3 of full scale Short time: full scale

Scale Unit : Bar or Bar+Psi
Optional extras: Connection also can be Chrome or Nickel plated. Scale unit can use KPa , MPa,Kgf/cm², kg/cm², torr, atm. Liquid inside can be changed to be silicon oil. Liquid inside can be filled by customer. Fill cap can be changed to be with on-off type .

Remarks:

1. OEM Service Could Be Provided;

2. Gauge face. We could print customer's logo according to requirement -- Brand authorization letter is needed.

3. We could also supply:

Metal Pressure Gauge,

Stainless Pressure Gauge,

Vacuum Pressure Gauge,

Trie Pressure Gauge,

Refrigeration Gauge,

Thermal Meter,

Air Test Gauge,

Water Test Meter etc.
