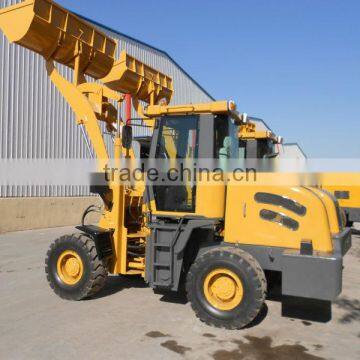

ZL16 front end loader grapple with snow plow

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

CE small wheel loader
Fully hydraulic steering
New design cab
Various working devices of attachment available
optional arm

Specification	overall weight(kg)	4400
	L×W×H(mm)	5700x1830x2730
	rated bucket capacity(m³)	0.8
	Rated load(kg)	1600
	Maximum dump height (mm)	3200/3700/4500
	Bucket indicator	Yes
	Max. breakout force(KN)	43
Engine	Model	weichai4102
	Type	In line,direct injection,four-stroke,liquid cooled
	Rated power(kw)	47kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ265
	Type	Single-stage,3 elements
	Gearbox type	Axial full power shift transmission
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	DF15.2C
Hydraulic system	Working pump	CBG2040
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	lift and right 35±1°
	Min turning radius(mm)	4200
Brake system	Brake type	Air assist oil disc on four wheel
Tyres	Standard tyres	22.5-16
Tyres

details:

Welcome u and ur team come to our factory to test!!!!
