Product Details
| Place of Origin | Chongqing, China | Brand Name | NAKIN | |
| Model Number | TY | Type | Oil Purifier |
Product Description
Specifications
1.turbine oil disposal2.break emulsification, dewater, degas
line work
4.change the black color

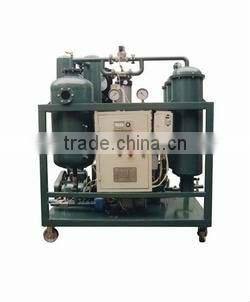

NAKIN TY-Turbine oil disposal

NAKIN TY-Turbine Oil disposal
Application:
Series TY vacuum turbine oil purifier mainly be used for purifying unqualified turbine oil, especially for serious emulsion turbine oil, it can quickly and efficiently break emulsification, separate water, gas, particles from oil. So that makes sure quality of treated oil to achieve new oil’s standard, ensure whole turbine system work safely. This equipment use a special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clear transparent. Series TY is a perfect turbine oil purifier for live line work; also it can purify low viscosity hydraulic oil and lube oil.
Features:
1. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
2. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
3. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.
4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
6. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
7. Work online with stream turbine, hydraulic turbine.
Technical Parameters:
Index Name  | Unit  | TY-10  | TY-20  | TY-30  | TY-50  | TY-100  | TY-150  | TY-200  | TY-300  | |
Flow rate  | L/H  | 600  | 1200  | 1800  | 3000  | 6000  | 9000  | 12000  | 18000  | |
Working vacuum  | MPa  | -0.06~-0.095  | ||||||||
Working pressure  | MPa  | ≤ 0.4  | ||||||||
Temperature range  |
  | 20 ~80  | ||||||||
Demulsifying value  | min  | ≤ 15/min(GB/F7035)  | ||||||||
Water content  | ppm  | ≤ 80  | ||||||||
Gas content  | %  | ≤ 0.1  | ||||||||
Cleanness  |
  | ≤ NAS 6 grade  | ||||||||
Power supply  |
  | 380V 50HZ 3Ph (As per user’s option)  | ||||||||
Working noise  | dB(A)  | ≤65~80  | ||||||||
Heating power  | Kw  | 12  | 15  | 18  | 24  | 45  | 60  | 72  | 84  | |
Total power  | Kw  | 14  | 17  | 20  | 27  | 48  | 66  | 81  | 97  | |
Inlet(Outlet)  | mm  | Φ25  | Φ25  | Φ25  | Φ32  | Φ42  | Φ50  | Φ50  | Φ60  | |
Weight  | kg  | 400  | 450  | 500  | 600  | 800  | 1000  | 1100  | 1550  | |
Dimension  | L  | mm  | 1280  | 1350  | 1350  | 1350  | 1500  | 1500  | 1600  | 1650  |
W  | mm  | 750  | 900  | 950  | 1000  | 1000  | 1200  | 1350  | 1350  | |
H  | mm  | 1450  | 1450  | 1500  | 1800  | 1800  | 1800  | 1800  | 1850  | |
