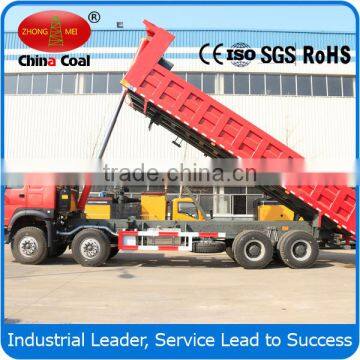

China Heavy Duty 8*4 Dumper Dump Tipping Truck With 336Hp Engine

HOWO 8×4 DUMPER TRUCKS Specification

ZZ3317N3567W

Engine

Model

WD615.69/WD615.47

Emission

EURO 2

Maximum output

336HP (247KW)/2200rpm /371HP(273KW)/2200rpm

Maximum torque

1300Nm/1300-1600rpm /1470Nm/1300-1600rpm

Number of cylinder

6

Displacement(L)

9.726

Bore(mm)

126

Stroke(mm)

130

Fuel

Diesel

Compression ratio

38.1hp/1

Engine oil filling quantity(L)

19

Specification

6-cylinder in-line with water cooling,turbo-charging and intercooling

Gearbox

Model Option

HW15710,HW19710,FAST RT11509C

Operation

Manual

Speeds

(8)9 Forward and 1 Reverse

Front Axle

Model

HF9

Rated load(kg)

9000

Maximum steering angle of inner wheel(.)

45

Kingpin inclination(.)

3

Camber angle(.)

1

Spring gage(mm)

850~900

Brake

Air drum brake

Min rim size(inch)

20

Driving Axle

Model

HC16(Tandem axle)

Type

Central single reduction + hub reduction,welded axle housing

Rated load(kg)

2×13000

Ratio

3.93/4.42/4.80/5.73/6.72/9.49

Spring gage(mm)

1020

Wheel tread(mm)

1850

Input flange

φ180

Differential device

Inter-wheel and inter-axle

Brake

Drum φ420×220

Weight(Without lubricants)(kg)

1 st axle:895/2nd axle:815

Wheel bolt(mm)

φ335-10×M22×1.5

Min rim size(inch)

20

Lubricants(L)

GL5 85W-90

Cab

Model

HW76

Bunk

1

Air Conditioner

With

Steering

ZF power steering,model ZF8098,hydraulic steering with power assistance Ratio:26.2

Electrics

Operating voltage

24 V,negative grounded

Starter

24 V,5.4 Kw

Alternator

3-phrase,28 V,1500 W

Batteries

2×12 V,165 Ah

Others

Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light

Tyre

Rims

8.5-20,10 hole-steel

Option

11.0020 Radial Tyres,12.00R20 Radial Tyres

Brake

Service brake

Dual circuit compressed air brake

Parking brake(emergency brake)

Spring energy,compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Bulk(Cargo Box)

Lifting Option

Front Lifting,Ventral Lifting

L × W × H(mm)

7300×2300×1500

Working Volume(M3)

25.2

Dimensions

Wheel base(mm)

1800+3500+1350

Overall length(mm)

10100

Overall width(mm)

2516

Overall height(mm)

3310

Weight(kg)

Permissible loading capacity(kg)

32000

Chassis dead weight(kg)

13900

Front axles loading capacity(kg)

9000

Rear axles loading capacity(kg)

13000×3

Performance

Maximum driving speed(km/h)

75

Maximum grade ability(%)

39

Minimum ground clearance(mm)

298

Minimum turning circle(m)

21

Fuel consumption(1/100 km)

40

Option

Color

Blue/White/Yellow/Green/Red

Brake

ABS,EVB

Engine

EURO 2,EURO 3,EURO 4
