4080 Plate Type Rigid PU Casters Series
- Qingdao
 - T/T
 - 20 days

You May Like
Product Details
| Brand Name | UNIONLEVER | Place of Origin | China | |
| Model Number | 4080 Plate type rigid PU casters series |
Product Description


Packaging Details: Carton, pallet, wooden case
Delivery Detail:     10 days to 20 days after payment for standard products
>>Features:
1."Cold forged" top plate and base
2.Double row ball bearing swivel raceway construction for extra strength
3.Hardened raceways
4.Zerk fitting in swivel race for lubrication
5.STALNLESS YOKE
6.Finish:All parts except wheel are zinc plated for corrosion resistance;
7.Legs are formed and welded to yoke base to increase strength
8.5/8 Dia King pin,1/2 Axle,1/4 Plate & Leg Thickness.
>>Applications:
Excellent for medium heavy duty platform trucks,food service equipment,large stock carts,etc;
| Item | FASTENING TYPE | FASTNING SHAPE | CODE NO | FASTNNING SPECIFICATION | ||
| OVERALL | BOLT HOLE SPACING | BOLT SIZE | ||||
| SWIVEL | TOP PLATE | ![]()  | A1 (4"5"6"Basic instructions)  | 100×114 | 66×92 to 76×76 (71×84)  | M10 |
| A2 (8"Basic instructions)  | 114×158 | 62×125 to 86×133 (74×129)  | M12 | |||
![]()  | A3 | 140×127 | 114×105 | M12 | ||
![]()  | A4 | 100×127 | 65×89 to 76×102 | M10 | ||
| A5 | 114×100 | 91×79 to 77×65 | M10 | |||
![]()  | A6 | 100×100 | 80×75 | M10 | ||
![]()  | A7 | 100×130 | 92×66 to 76×76 | M10 | ||
| WELDED PIPE | D35×115 PIPE | |||||
| RIGID | TOP PLATE | Board size, bolt hole spacing, assembling bolt size at the same steering plate A1-A7 | ||||
| Note | NEW | |||||
| Fixed type can be mounted brake (order specification) | ||||||
| Applicable bearing specification 6203zz | ||||||
| Can electric coating | ||||||
>>>40 Series Specifications Unit:mm
| CASTER PART NUMBER | WHEEL SPECIFICATION | CASTER SPECIFICATION | ||||||||
| SWIVEL | RIGID | BRAKE | DIAMETER | TREAD WIDTH | TYPE | BEARING (Bearing)  | AXLE DIA (USE BOLT))  | OVERALL HEIGHT | SWIVEL RADIUS | LOAD CAPACITY(kg) |
| 4040 plate type | 101 | 48 | See details page | See details page | 12.7 | 142 | 80.5 | See details page | ||
| 4050 plate type | 126 | 48 | See details page | See details page | 12.7 | 166 | 94 | See details page | ||
| 4060 plate type | 151.5 | 44 | See details page | See details page | 12.7 | 188 | 111 | See details page | ||
| 4080 plate type | 202 | 48 | more below | more below | 12.7 | 240 | 152.5 | more below | ||

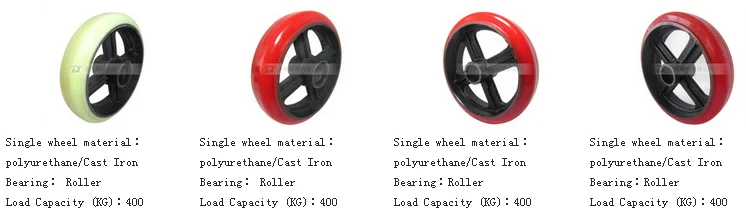

>>>4080Plate type single wheel material display

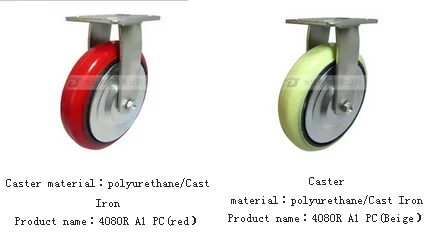

>>>4080plate type rigid finished products display
>>>Specifications for 40 Series
| ACCESSORIES CODE | DESCRIPTION |
| TB | Top Lock Brake |
| TG | Thread Guard |
| DW | Double Weld |
| SWL | 4 Position Swivel Lock |
| ZA | Zerk Axle |
| BB | Ball Bearing |
Minimum Order Quantity:  500 piece/pieces for normal caster wheel
Loading Port:  Tianjin, QIngdao, Shanghai or Ningbo
Delivery Time:  About 20 workdays for normal caster wheel
Payment Terms:  T/T
Packing:  Standard export packing
Sample fee: Paid by customer, but can be refund when order placed.
Delivery fee: Send by express, paid by customer, but can be refund after order placed.
Quick response: Your enquiry will be replied within 24 hours.

Contact: Xiaolin Yang
Email: caster3@unionlever.com
Skype: unionlever..caster
Mobile:+86-17854208206
Website: /en
