Home > Products > co2 laser cutting machine > acrylic co2 laser cutting machine 1325 120w

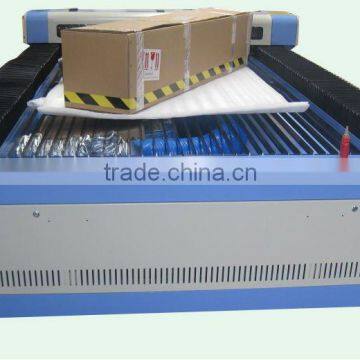

acrylic co2 laser cutting machine 1325 120w
- 20 Set / Sets per Month
- shanghai shenzhen guangzhou qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Laser Type | CO2 | Place of Origin | Guangdong, China | |
| Brand Name | szret | Model Number | 1325 120w |
Product Description
Specifications
acrylic co2 laser cutting machine 1325 120wlong work time co2 laser tube
honeycomb grid worktable
DSP cad,coredraw, ps soft
Large scale laser cutting machine
Our own developed and desigend template laser cutting machine adopts high-performance 80-200w hermetic laser (80w/100w/130w/150w/180w the laser tube power can be optioned in you need ),it changes the traditional low-precision and slow-speed shotcoming in sawing .improves working efficiency,to meet high precision demand for all clients. This kind model integrates laser ,precision machinery ,computer controlled technology to process , the user only
needs to input parameters to computer ,then machine will work automatically.
1. Applicable materials:
Woodenboard ,acrylics,plexiglass,rubber,platics,bamboo product, density board,food packaging,air model, building madels and other non-metal material
2. Applicable industury :
This machine is suitable to professional user for cutting performance in
template,package,advertisement model,building upholster,fitment and other industries.
Parameter:
model | 1318 | 1326 | 1626 |
Working area | 1300*1800mm | 1300*2500mm | 1600*2500mm |
Whole machine size | 2250*1800*1000 | 2950*1800*1000mm | 3200*2180*1000mm |
Laser type | Sealed co2 laser tube | ||
Laser power | 80w 100w 120w 150w | ||
Cooling mode | Water cooling and protection system | ||
Engraving speed | 0-60,000mm/min | ||
Cutting speed | 0-24,000mm/min | ||
Resetting position accuracy | +/-0.05mm | ||
Minimum shapping character | English 1*1mm | ||
Graphic format supported | BMP,HPGL,PLT,DST and AI | ||
Controlling software | DSP control system | ||
Compatible software | Corel draw, auto cad,photoshop | ||
Driving system | Stepper | ||
Working voltage | AC 110-220V+/- 10%,50-60hz | ||
Operating temperature | 0-45 degree | ||
Operating humidity | 5-95% | ||
Model | 1318/ 1325 |
Laser power | 60W/80W/130W/150W(optional) |
Type of laser | Sealed CO2 laser tube |
Valid work area | 1.(1300×1800)mm 2.(1300×2500)mm |
Cooling method | Water cooling |
Engraving Scanning speed | 1-50000mm/min |
Maximum moving speed | 50000mm/min |
Cutting speed | 1-24000mm/min |
Laser power control | 1-100% real-time adjustable |
Minimum shaping character | 2.0mm × 2.0mm |
Maximum scanning accuracy | 2500DPI |
Positioning accuracy | ≤ ± 0.01mm |
Supported photo formats | DST, PLT, BMP, DXF, AI |
Supported software | CORELDRAW, PHOTOSHOP, AUTOCAD, a variety of apparel CAD software |
Color separation process | Has |
