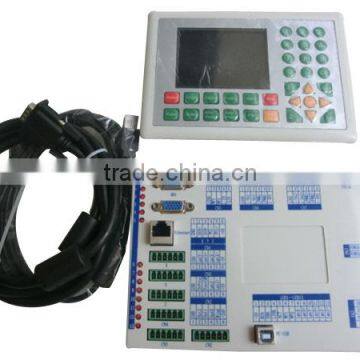

RDC6332M RDC 6332M RD-6332M CO2 laser controller controlling system control card for metal and non-metal laser cutting system
- 100 Set / Sets per Month
- Shenzhen Guangzhou Shanghai Qingdao Ningbo and so on
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Ruida RD-6332G CO2 laser controller, laser cutting and engraving system, DSP controller, controlling two laser heads separately
-
Leetro MPC 6565 New DSP CO2 Laser Cutter Engraver Machine LCD Motion Controller
-
Leetro motion controller MPC6565 laser control board for CO2 laser engraver and cutter
-
Leetro MPC6565 Laser Controller, Panel, and Dongle MPC 6565
-
Leetro MPC6525A (upgraded from MPC6515) MPC6525 MPC 6525 controller mainboard mainboard
-
mpc6525/A leetro co2 laser engraving and cutting controller
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ruida | |
| Model Number | RDC6332M |
Product Description
Laser control signals, differential output, TTL, up to 20mA driving ability
PWM frequency 2.5KHz~100KHz. PWM duty ratio 1%~99%
Laser power control : analog voltage,0~5V
PULSE+DIR for motor control, differential output.
Based on USB2.0 for data transferring
General purpose input and output, photoelectric isolation
Linear and circular interpolation, interpolate precision is +/-0.5puse
Outline
Metal and non-metal laser cutting system is based on the RDC6332Mmotion controller. Employed with laser metal techniques, this control system is suitable for non-metal laser cutting and metal laser cutting.
System encryption on board
Non-volatile memory on board for user parameters
File storage capacity is up to 256M
The recovery of the power failure memory function
Controller program Updated by software
2 channels laser control, PWM and analog are available
Specific interface for RF CO2 laser
4 axes supported and pulse + dir for motor control
Specific interface for tracing laser head control
Linear, circular and B spline interpolation
Specific functions for metal cutting
