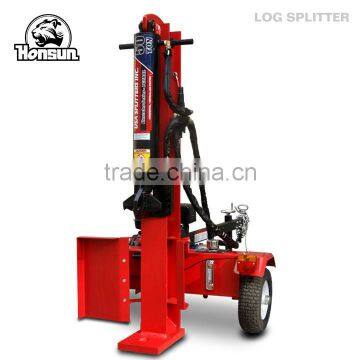

Honda GX390, Briggs&Stratton I/C Gross and Kohler Command engine 50T hydraulic log splitter for tractor

FOB Price

USD $850 - $890 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Log Splitter
Use	Split log wood into pieces	Power Type	Gasoline
Production Capacity	50 ton	Place of Origin	Shandong, China
Brand Name	HONSUN	Model Number	HS-LS-50T
Dimension(LWH)	23001150960mm	Weight	280 kg
Certification	CE/EPA	Warranty	24 months
After-sales Service Provided	Engineers available to service machinery overseas

SPECIFICATIONS
√	Model No.	HS-LS-50T
√	Manufacturer	Honsun
√	Pre-Assembled	No
√	Engine Brand	Honda, Briggs & Stratton, Kohler, Lifan, Loncin, Ducar
√	Displacement	389cc/420cc/429cc/445cc
√	Horse Power	13hp/13.5hp/14hp/18hp
√	Engine Start	Electric/Recoil
√	Splitting Method	Vertical and horizontal
√	Max Log Length	25"
√	Max Log Diameter	25"
√	Hydraulic Cylinder	5"x25"
√	Ram Travel	25"
√	Cycle Time	12 seconds
√	Wedge	4 way blade (2 way available), replaceable, sharpenble
√	Max Force	50 ton
√	Control Valve	100L three position with auto-return (one or two handle available)
√	Hydraulic Filter	Yes
√	Pump	22 gallon, 2 stage
√	Tank Capacity	36L
√	Log Cradles	Included
√	Oil And Temperature Gauge	Included
√	Standard Tire	16*6.5-8
√	Vacuum Tire	16*4.8-8
√	Fenders	Included
√	Log Guardian	Included
√	Tow Hitch	2" America, Australia, Europe and New Zealand types
√	OEM	Acceptable
√	Consumer Warranty	24 months

THE PRO'S CHOICE
•	Honda, Kohler, Briggs & Stratton optional
•	With rear light and license plate light, signal synchronized with the car
•	Special design, oil tank can be widely opened to get rid of silt
•	Backplate with pierced design, deform difficulty
•	Front wheel with lift
•	Oil and temperature gauge, can see oil ullage obviously

HONDA GX390 ENGINE
Engine brand	Honda GX390
Type	GX series OV-commercial duty
Horse power	13hp
Rated power	9.56kw
Displacement	389cc
Bore	3.5"
Stroke	2.5"
Torque (ft./lbs.)	18.50 2500 RPM
Shaft output	Horizontal
Crankshaft	Q-type
Shaft diameter	1"
Shaft length	3 31/64
Shaft keyway	1/4"
Shaft end tapped	3/8-24
Shaft rotation	Counterclockwise
Cylinder (qty.)	1
Cylinder bore	Cast iron
Compression ratio	8.0:1
Cooling system	Air cooled
Air cleaner type	Dual element
Fuel tank capacity (qt.)	6.4
Fuel filter	Fuel tank filler neck strainer
Oil capacity (qt.)	1.16
Lubrication system	Forced splash
Low oil alert	Yes
Low oil shutdown	Yes
Ignition system	Electronic
Governor system	Centrifugal mechanical
Carburetor	Float, external vent
Throttle control	Remote (wire)
Choke control	Manual
Max. RPM	3600
Charging system amps	10
Muffler included	Silent, exhaust pipe protector, deflector
Auto compression release	Yes
Bolt circle (in.)	5, 6 1/2
Mounting base L x W (in.)	7 11/16x3 25/64 to 4 1/16
Dimensions L x W x H (in.)	15 7/8x17 11/16x17 3/8
EPA/CARB approval (California air resource board)	Yes
