Home > Products > railway equipment > TLG18 Gantry for Rail Track Construct

TLG18 Gantry for Rail Track Construct

FOB Price

US$ 758,500 - 875,000 / Set

1 Set(Min. Order)

Port dalian port

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	rail track laying
Rated Loading Capacity	12t	Max. Lifting Load	18t
Max. Lifting Height	4082 mm	Span	8470 mm
Place of Origin	Singapore	Brand Name	DELTA
Model Number	TLG18 rail track laying gantry	Warranty	24 month
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

TLG18 gantry for rail track construct

Description of Gantry

The track-laying gantry is a specific machine designed to lift, transport and lower a

track panel 18m long with a max. weight of 12 Tons.

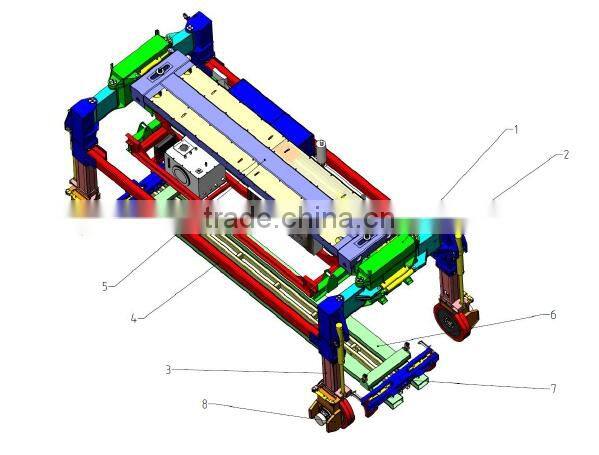

The gantry consists of a metal structure, and mainly comprises the following parts (see

figures below):

1.1 no. main longitudinal BACK BONEstructure

2.4 nos. articulating HINGE connecting back bone to TELESCOPIC LEGS

3.4 no. INNER TELESCOPIC LEGS

4.2 no. longitudinal leg-CONNECTING BEAMS

5.1 no. HOISTING UNIT mounted on back bone

6.1 no. CLAMPING PLATFORM

7.2 nos. TRANSVERSE CLAMPING BEAM with two clamps each

8.4 nos. WHEEL DRIVE CARRIER

General Manufacturing Specification

Overall Length with Spreader beam	8470 mm
Max. permissible operating height	4082 mm
Min. closed height	3150 mm
Max. permissible operating width	4112 mm
Usual operating width on top	3200 mm
Max. width during transport	2962 mm
Weight of the Gantry without Track Panel	20.0 Ton
Weight of the Track Panels to be moved	12.0 Ton
Max. test weight to be lifted (in static position)	18.0 Ton

The operating conditions of the gantry are as allows:

Straight line in Tunnel;

Curve in Tunnel;

Straight line in Stations;

Technical data

Constant longitudinal inclination slope			±3 %
Maximum longitudinal inclination slope on ramps			±15 %
Viaduct curvature radius			140m
Total weight of gantry (without Track Panel)			20,000 kg
Maximum weight of 25m Track Panel			12,000 kg
Maximum speed of advance of empty gantry			2 km/h
Maximum speed of advance of gantry on ramps			1 km/h
Power of DEUTZ turbo diesel engine			60 kW
Tension of control and ancillary			24 V
Maximum hydraulic pressure of drive circuit			400 bar
Maximum hydraulic pressure of ancillary circuit			150 bar
Specifications of oil for hydraulic installation		viscosity 24-28 cSt at 50°C (operating temperature)
Noise value	The value of the noise produced by the gantry is 75/80 dB at a 7 m distance in free-field conditions due to the presence of the soundproof cab

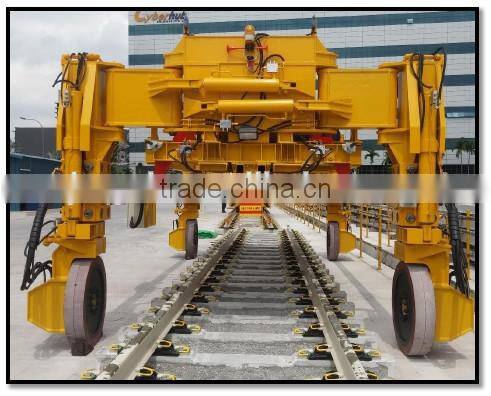

Front view of the machine

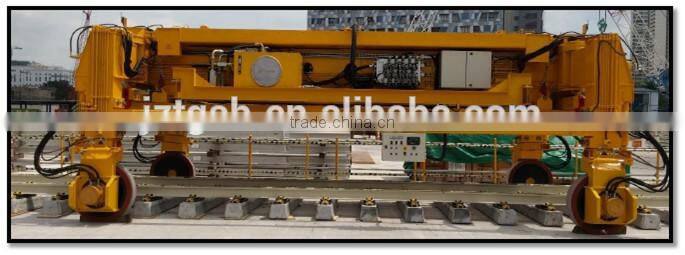

Lateral view of the machine

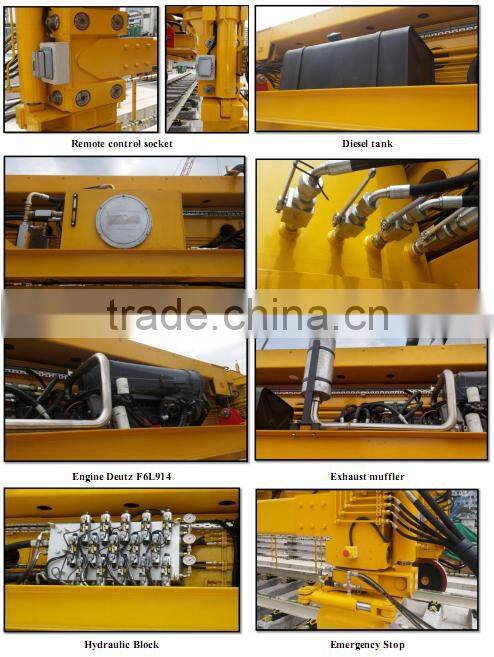

The gantry includes the following features (see photo showing individual parts)

Front lamp

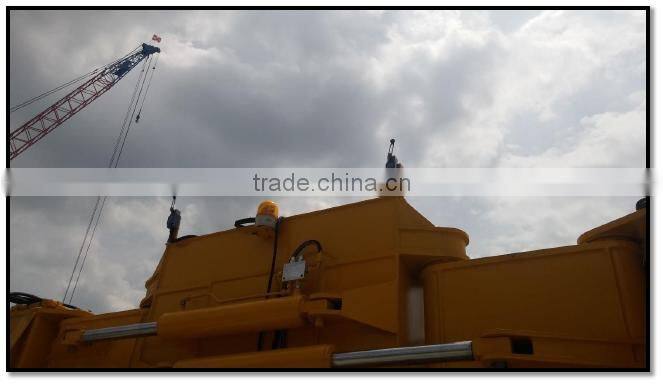

Limit switch and revolving light

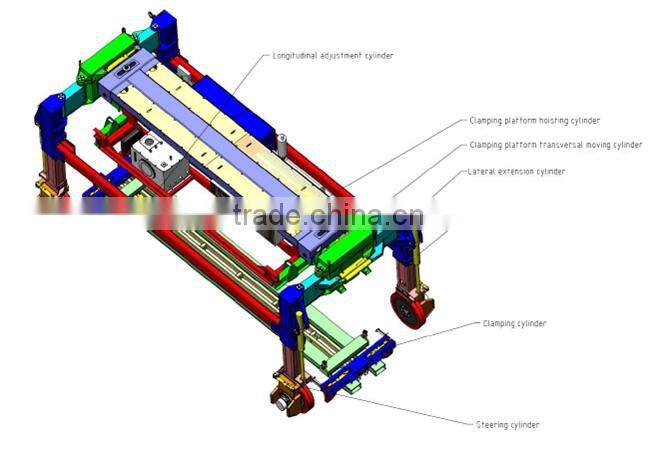

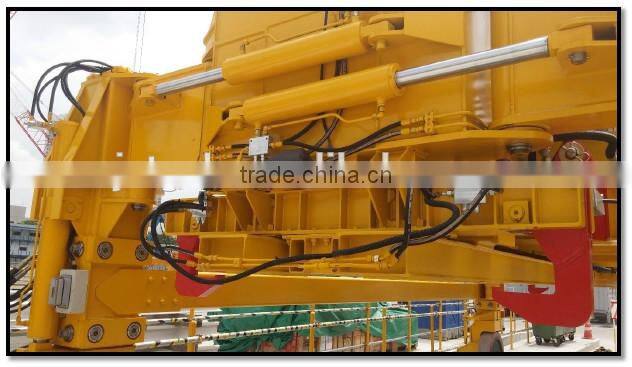

TLG18 Cylinders

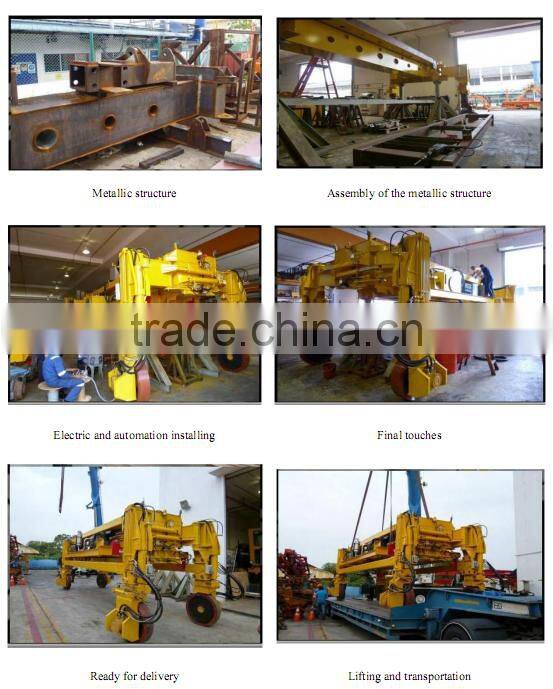

Manufacturing process photos

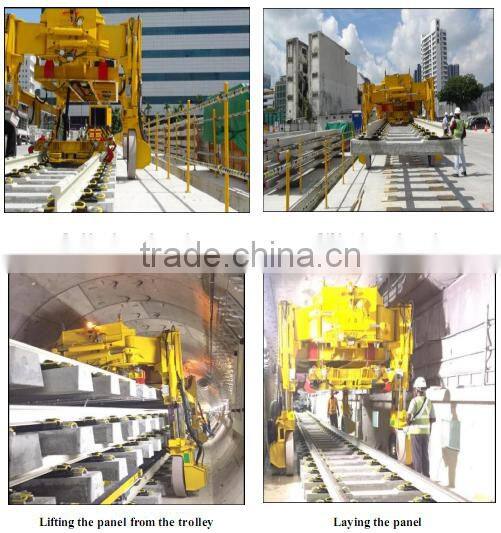

In operation photos

FAQ

Q1:Your company is manufacturer or dealer?

A1:we are professional of railway maintenance equipment manufacturer.Mainly sales rail cutting series.rail drilling series,rail grinding series,rail tamping series,rail welding,rail lifting series,rail trolley ,rail tools and so on.

Q2:What is the warrenty about your product?

A2:our product warrenty is 1 year, we can provide easily worn parts to you.

Q3:Why your product is expensive than other company?

A3: Our company in order to guarantee the product quality,using the best materail,the engine is imported from abroad.

Q4:What service you can provide?

A4: we can provide installation and using video for you.If u order quantity is large we can send our engineer to guide.

Q5:What is the delivery condition and the payment?

A5: the payment is T/T .After receive the payment we arrange shipping within 15 days, if we do not have stock we will contact you.
