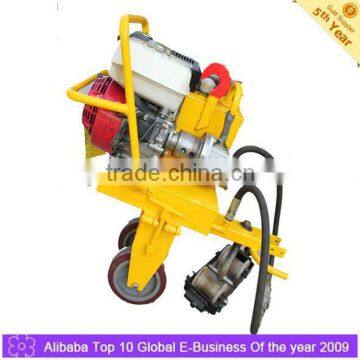

TieGong JGB-20 type petrol engine driven hook-head wrench

Detailed product parameter:

1.ISO9001

2.PATENT

3.CRCC

4.The special wrench for Brazil

   Our company is a leading manufacturer specialized in variours railway maintenance equipments in China.. Products include rail cutter, rail grinder, rail drilling machine, track lifting and lining machine, railway ballast tamper, railway bolt wrench, rail bender , rail gap adjuster, cutting disc, grinding stone, and etc .Since its foundation in 1992, has provided professional quality service to thousands of units. After years of development, the company has created a wealth of experience in sales and after-sales service team. Customers and users in the formation of a very high reputation.

JGB-20 typeEngine driven hook-head wrench

Manual

one,Applying scope

  It's suitable for installing & dismounting the elastic fastening on the railway track. With double top head, it can install two pieces of elastic fastenings at the same time, featuring high working efficiency, accurate installation, focus control, easy operation. It’s an indispensable device used in railway overhaul and rail replacing operation.

B. main technical parameter

1,petrol engine type        HondaGX200

2,engine rated power:      4.8kw

3,engine rev.:             3600r/min

4,rated thrust:              20KN

5,top head QTY.:             2

6,working efficiency:       ≤4sec/one piece

7,weight;                       219kg

8,overall dimension:       1960×650×800(mm)
