Home > Products > Testing and analysis instruments > Hardgrove Grindability Index Tester for coal sample grindability test
Hardgrove Grindability Index Tester for coal sample grindability test
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | GUANGMING | |
| Model Number | GM-60 | Power | Electronic | |
| Usage | Other, Grindability |
Product Description
Specifications
hardgrove Index Tester1. Used for coal grinding
2. Hardgrove method
3. Standard coal sample available
4. Automatc stop

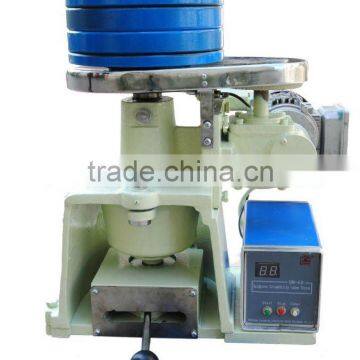

Hardgrove Grindability Index Tester for coal sample grindability test
Typical applications:
This machine takes grinding law as the theoretical basis (the energy consumed in grinding coal is proportional to the new surface area of coal powder), by grinding, sieving and weighing the prepared coal sample under the conditions specified in GB/T1998 "Coal Grindability Index Determination Methods" (Hardgrove method), then you can read the grindability index from the index charts of standard coal sample, the higher index, means the sample is more easier to be broken.
Automatic feeding the bowl, micro-computer makes counting and the machine will stop automatically when up to 60 revolutions, the emergency stop is available when getting malfunction, the revolutions will be accumulated after restarting.
This product is certificated by authoritative departments.
Technical parameter:
GM-60 Hardgrove Grindability index Tester | |
Rotating speed(r/min) | 20±1 |
Limited working revolutions(r) | 60±1/4 |
load bearing capacity(N) | 284±2 |
Motor power(W) | 90 |
Working power supply(V) | 380 |
Total weight(kg) | 90 |
Dimension(mm) | 360×420×490 |
