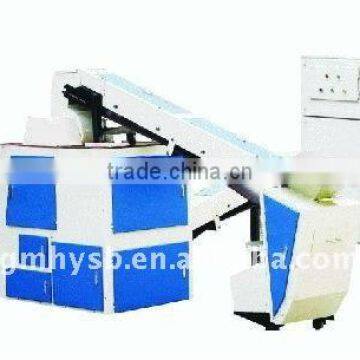

Environment Friendly Sample preparation Machine
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | Guangming | |
| Model Number | GM/Pphi-ASWC | Condition | New |
Product Description
Specifications
Environment Friendly Sample MachineGB474-2008 / ISO standard
Automactic cutter-chute division system
Full sealed design
TYPICAL APPLICATIONS
This unit is designed and manufactured in accordance with the standards and procedures specified in GB474-2008 strictly. It is used for sample preparation of the coal or other medium hard solid material for component analysis by quick feeding, crushing, mixing and dividing continuously. (Inspections show the samples precision of machine meets national standard without systematical difference.)
ESPECIALLY SUITABLE FOR
The unit is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
ADVANTAGES
- It can achieve whole procedures of sample preparation continuously without manual operation and also can avoid the manual operating error.
- Automatic cutter-chute division system makes sure the representation of sample.
- Even discharging size, the particle size and division ratio are adjustable.
- Full-sealed design and equipped with dust extracting outlet which meets the environment requirements.
- All moving parts have the safeguards which meets the requirements of work safety.
- The openable cover makes daily maintenance more convenient.
- It can work normally on the flat ground without fixing any base.
TECHNICAL PARAMETER
ENVIRONMENTAL MULTI-FUNCTION INTEGRATED SAMPLE PREPARATION SYSTEM | |
Model No. | GM/PΦ-ASWC |
Feeding size of primary crushing (mm) | ≤150 |
Discharging size of primary crushing (mm) | ≤13 or ≤6 (Adjustable) |
Division ratio of primary crushing | (About)1:2,1:4,1:8,1:16(Adjustable) |
Discharging size of secondary crushing (mm) | ≤1 or ≤3(Adjustable) |
Division ratio of secondary crushing | 1:2(About) |
Capacity (kg/h) | 1000-2000 |
Total moisture of material | ≤18% |
Overall dimensions (mm) | 2980×2650×1720 |
Motor power(kw) | 11 |
Working power supply (V) | 380 |
Total weight (kg) | 1300 |
Air volume(m3/h) | 1600 |
Purification efficiency | 99.5 % |
Ash cleaning vibrating motor power(v) | 180 |
Motor power of air blower (kw) | 3 |
Remark | Full sealed automatic material feeding and abandoning system, equipped with dusting machin |
