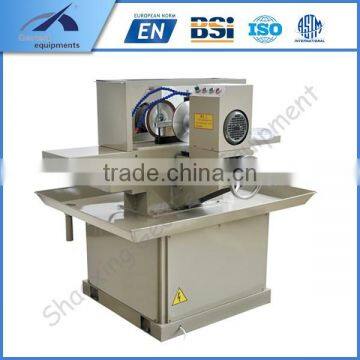

SGM-2 Specimen Grinding Machine(Double-direction)

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	GEOTEST EQUIPMENTS
Model Number	SGM-2

Specimen Grinding Machine
1.To cut ends specimens
2.equipped with two power grinding
3.high quality,hotitem

SGM-2 Specimen Grinding Machine(Double-direction)

Characteristics:

1.To cut ends specimens from surface grinding ping. Making high precision specimens.

2.This machine is equipped with two power grinding head 200 diamond grinding wheel.

3.Specimens in the installation, work to be automatic reciprocating, grinding head can be automatically,

can also be manual forward grinding, automatic speed can be adjusted.

Model	SGM-2
Geinding wheel	200mm dia.
Max.Grinding height	200mm
Max specimen size	150×150×150mmcubes;dia.150mm cylinder
Automatic cross feed in double direction
Grinding motor power	1100w ×2,2750r.p.m
Standard acccuracy	±0.05mm of flatness(within 50range);Ra3.2 of finish
Power supply	220V.50Hz
Overall dimension	1450×1360×1270mm
Weight approx	250Kg
